IBSP104CT120-EB—Reflector 15°| 24°|38°|45° Adjustable IP65 Glass Diffuser Honey Comb Downlight

型号

IBSP104CT120-EB

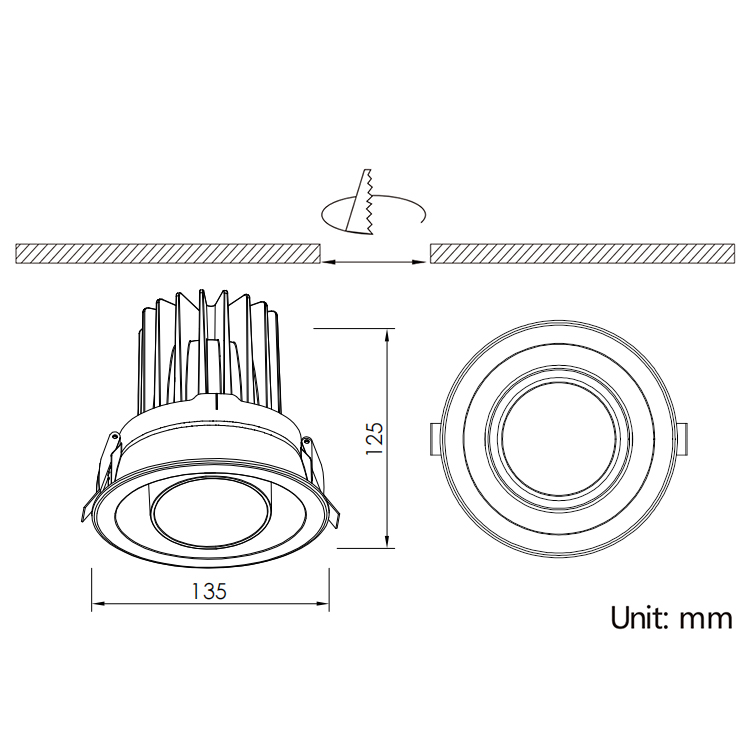

产品尺寸

Ø135mm×H125mm

开孔尺寸

Ø120mm

应用场景

Guestroom & Suite

Restaurant

Corridor & Hallway

Shop

功率

28W

发光角度

15°24°38°45°

光色选择

2700K3000K3500K4000K5000K5700K6500K

显色指数

Ra.80Ra.90Ra.98

功率因素

PF>0.5PF>0.9

工作电压

AC200-240VAC100-277V

防水等级

IP65

调光方式

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

可选光源

CREEBridgeluxHongliPhilipsOsram

可选电源

EagelriseLifudOsram

安装方式

Recessed Mount

数量：	- +

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP104CT080-EB	8W	Ø93mm×H85mm	Ø80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT080H86-EB	15W	Ø93mm×H86mm	Ø80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H78-EB	10W	Ø110mm×H78mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H98-EB	15W	Ø110mm×H98mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° Lens15°\| 24°\|38° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H124-EB	25W	Ø110mm×H124mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT120-EB	28W	Ø135mm×H125mm	Ø120mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
