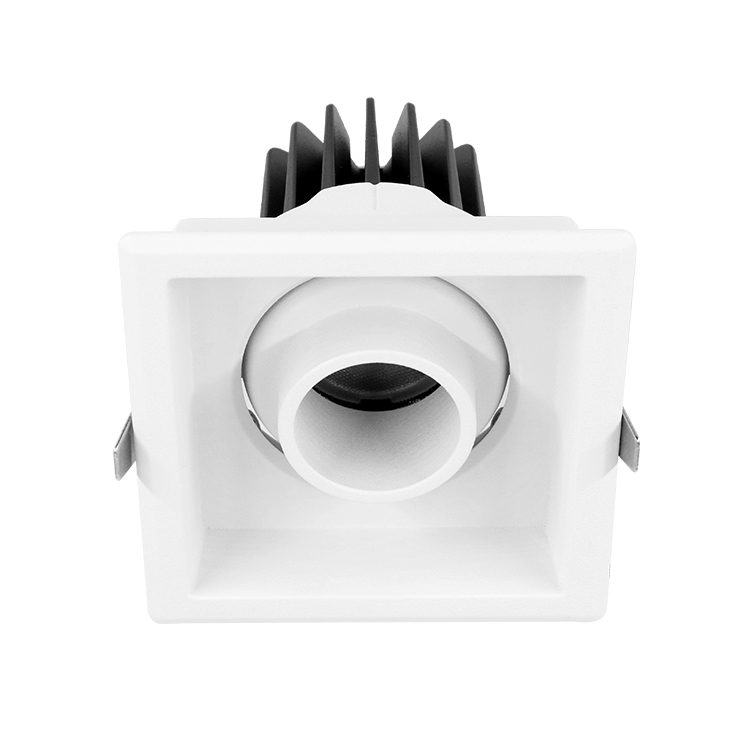

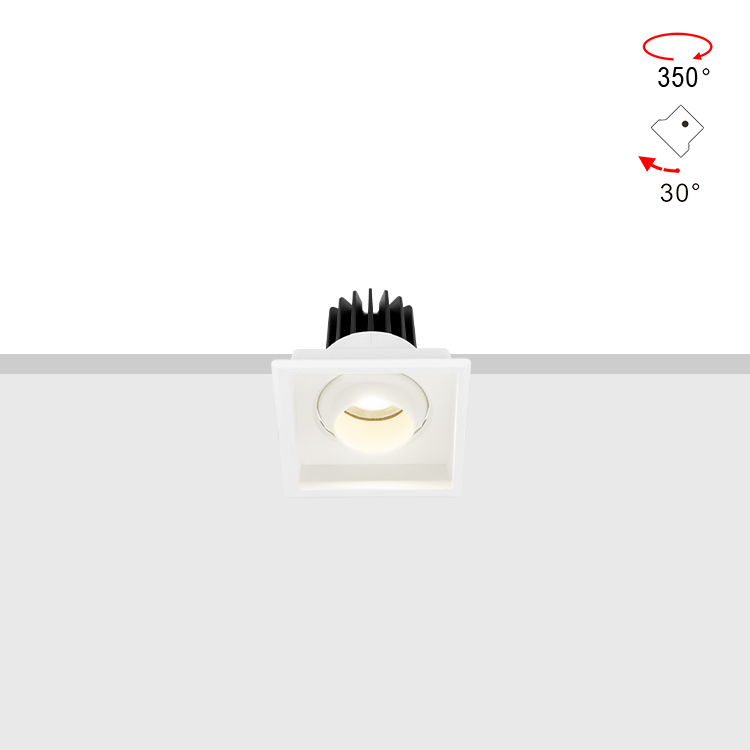

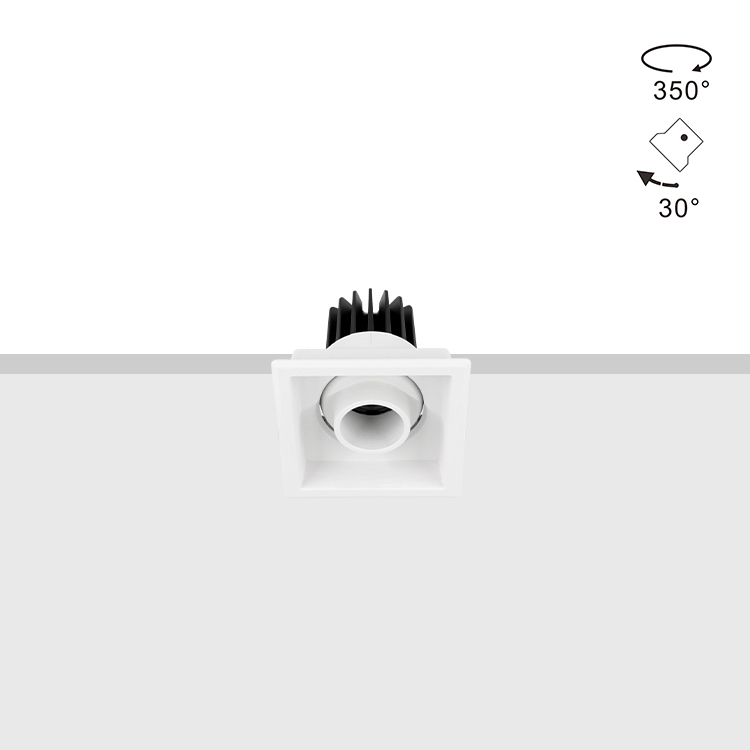

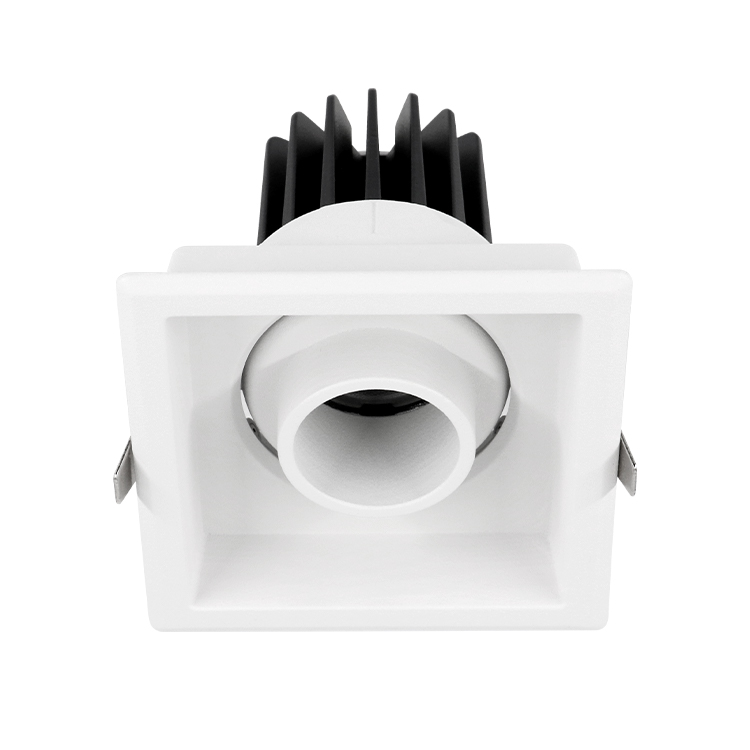

Reflector 20°| 40° Lens 15°| 24°|36° Adjustable IP65 Glass Diffuser Honey Comb Square Downlight

Model No

IBSP104SCT080-EB

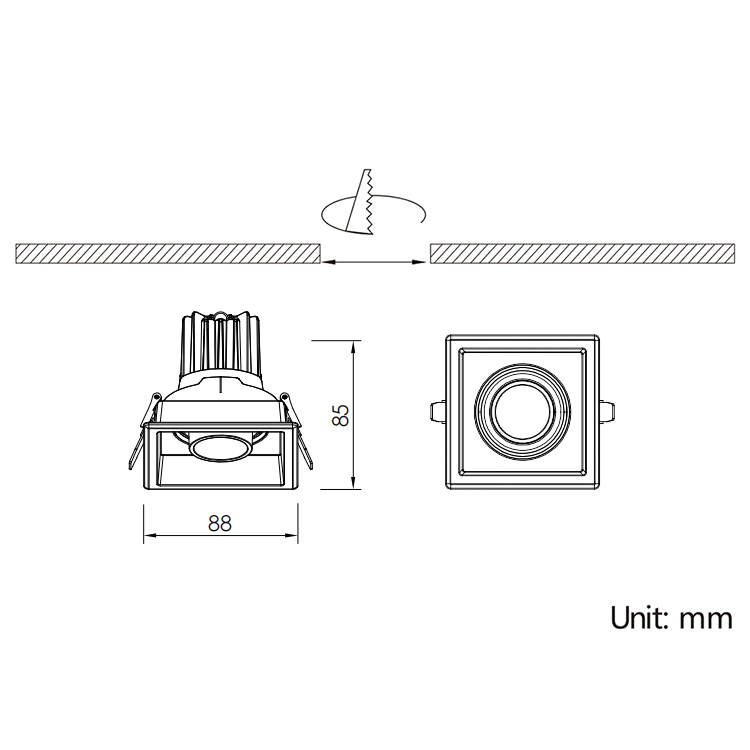

Diemnsion

L88xW88×H85mm

Cutout

80×80mm

Application

Guestroom & Suite

Restaurant

Corridor & Hallway

Shop

Power

Beam Angle

15°20°24°36°40°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description
Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Discription
IBSP104SCT080-EB	8W	L88xW88×H85mm	L80×W80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104SCT080H86-EB	15W	L88xW88×H86mm	L80×W80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104SCT095H78-EB	10W	L106xW106×H78mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104SCT095H98-EB	15W	L106xW106×H98mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45° Lens15°\| 24°\|38° (Adjustable:horizontal 355°+vertical 30°)
IBSP104SCT095H124-EB	25W	L106xW106×H124mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104SCT120-EB	28W	L129xW129×H125mm	L120×W120mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
