1. Beam Angle:100°
2. Lumen>120lm/w
3. PC diffuser
4. IP20; IP54 on the visible part of the product once installed;
5. CCT version is optional
• CCT:2700K|3000K|4000K|5000K|5700K|6500K
• Body Material：Die-casting Aluminum
• CRI：Ra≥80|R≥90
| Quantity: |
|---|
| Model No. | Watts | Lamp Outer Size | Cutout Hole Size | Beam Angle |
|---|---|---|---|---|

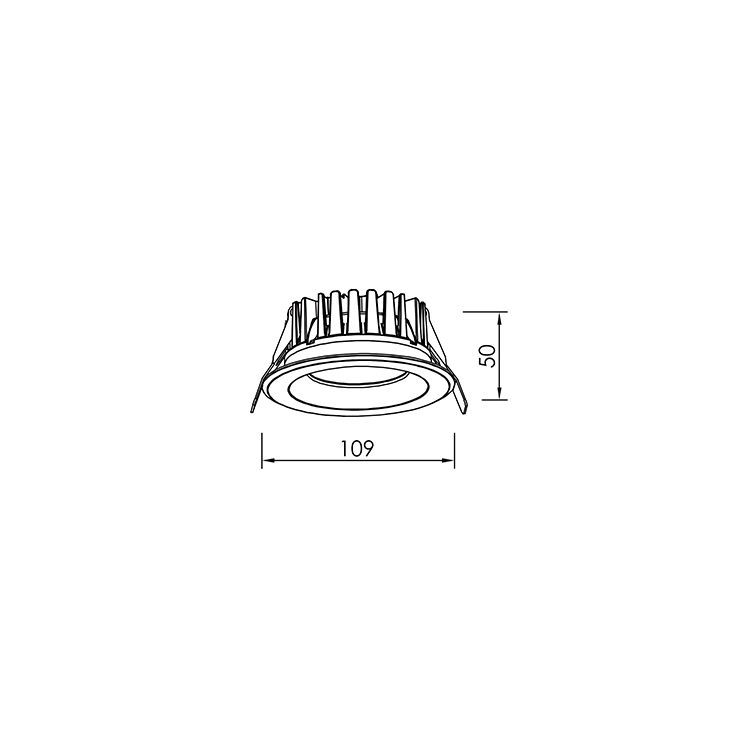

| IBDL225CT090-CCT | 15W | Φ109*H50mm | Ø90mm | 100° Fixed |
| IBDL225CT115-CCT | 20W | Φ134*H50mm | Ø115mm | |
| IBDL225CT140-CCT | 25W | Φ160**H52mm | Ø140mm | |
| IBDL225CT170-CCT | 35W | Φ188*H52mm | Ø170mm | |
| IBDL225CT200-CCT | 42W | Ø227*H52mm | Ø200mm |
