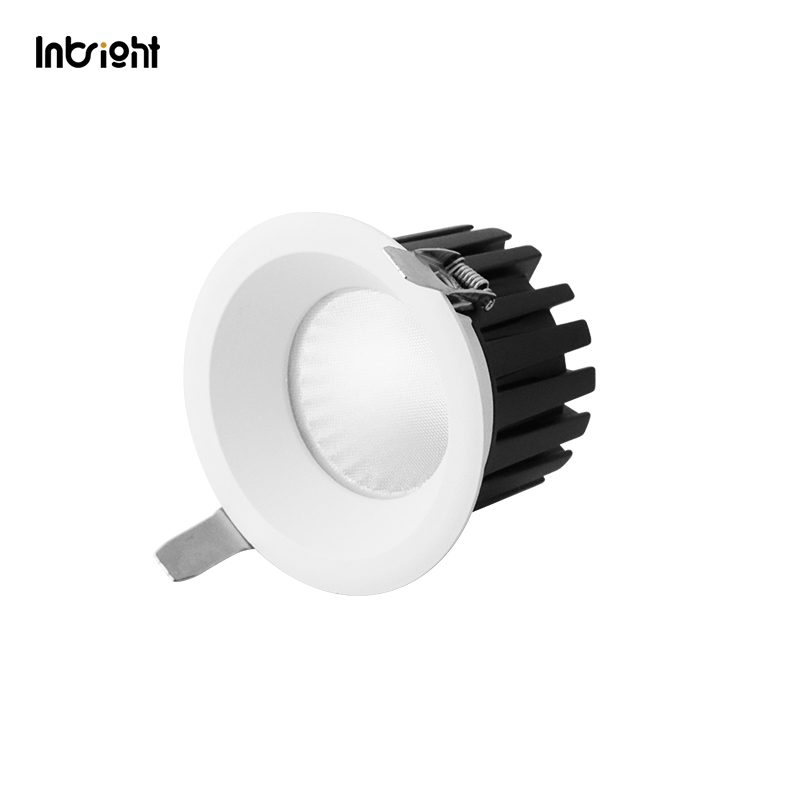

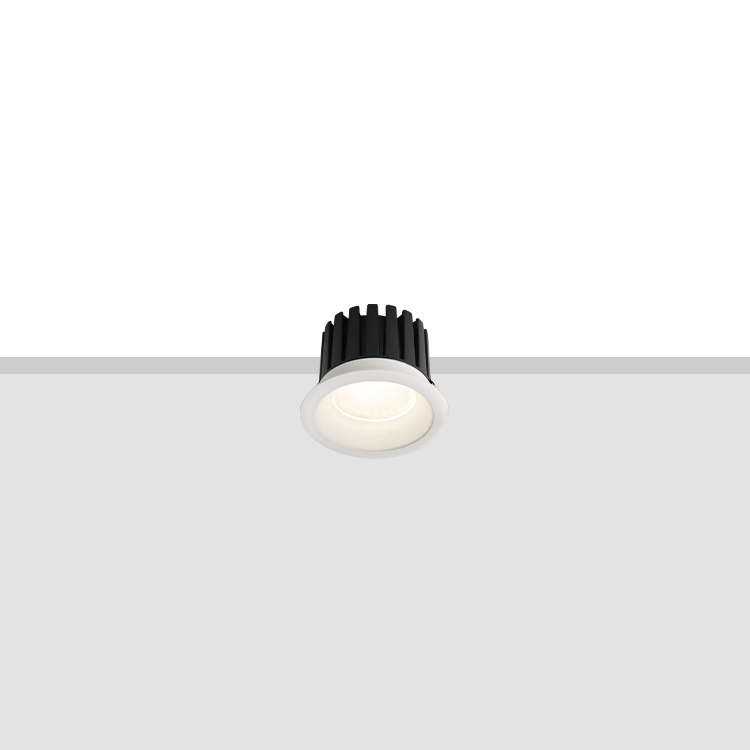

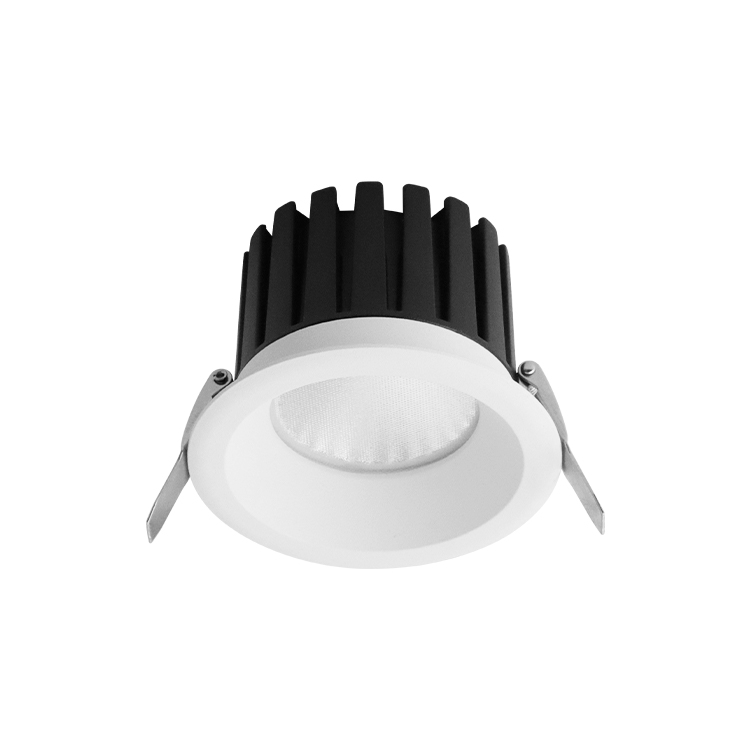

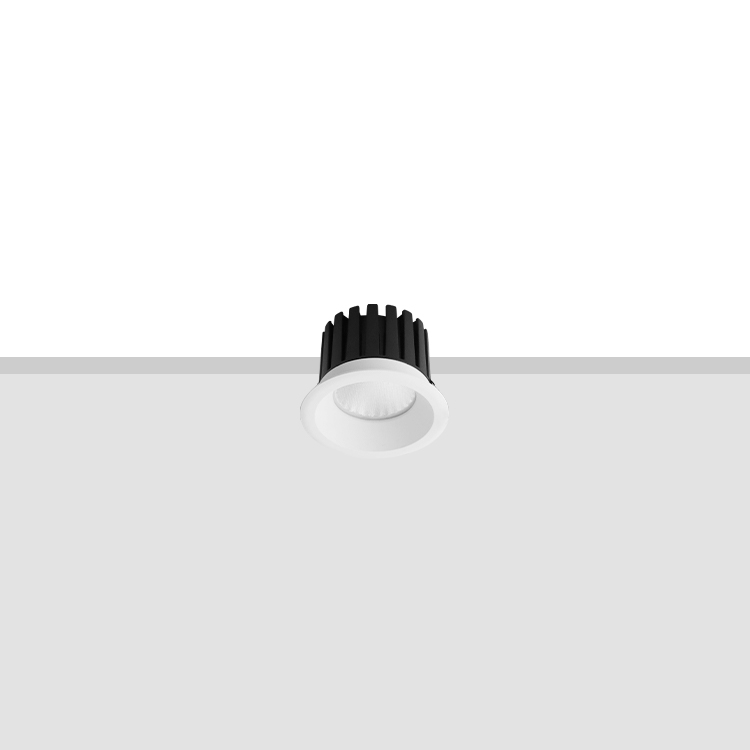

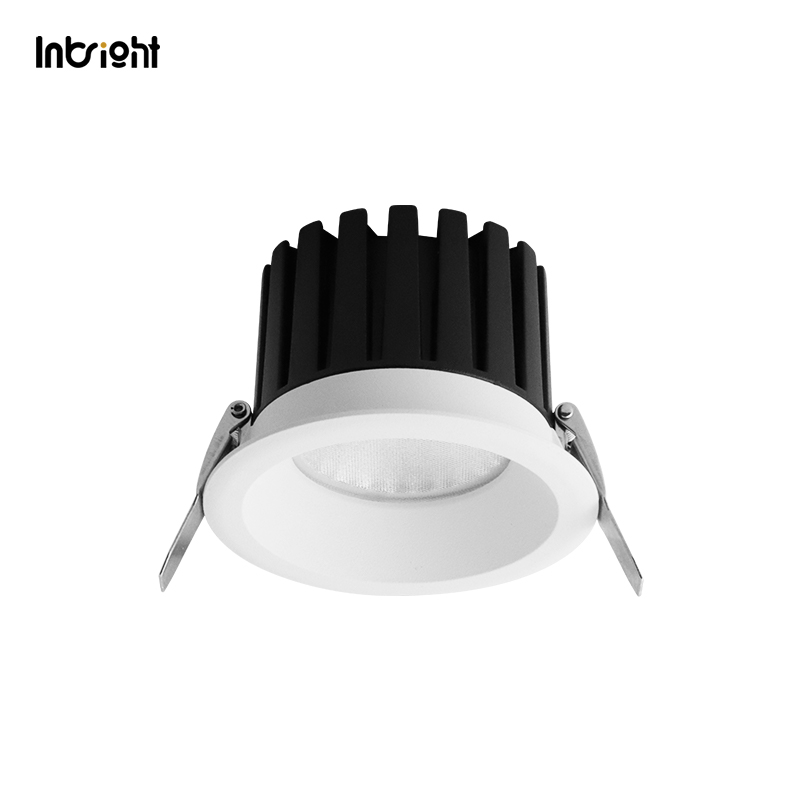

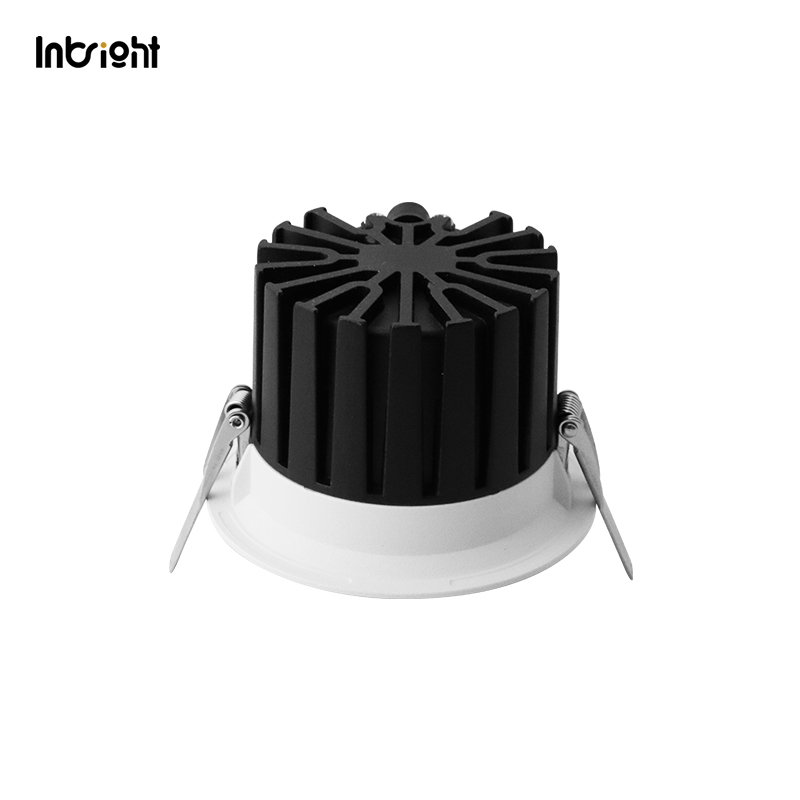

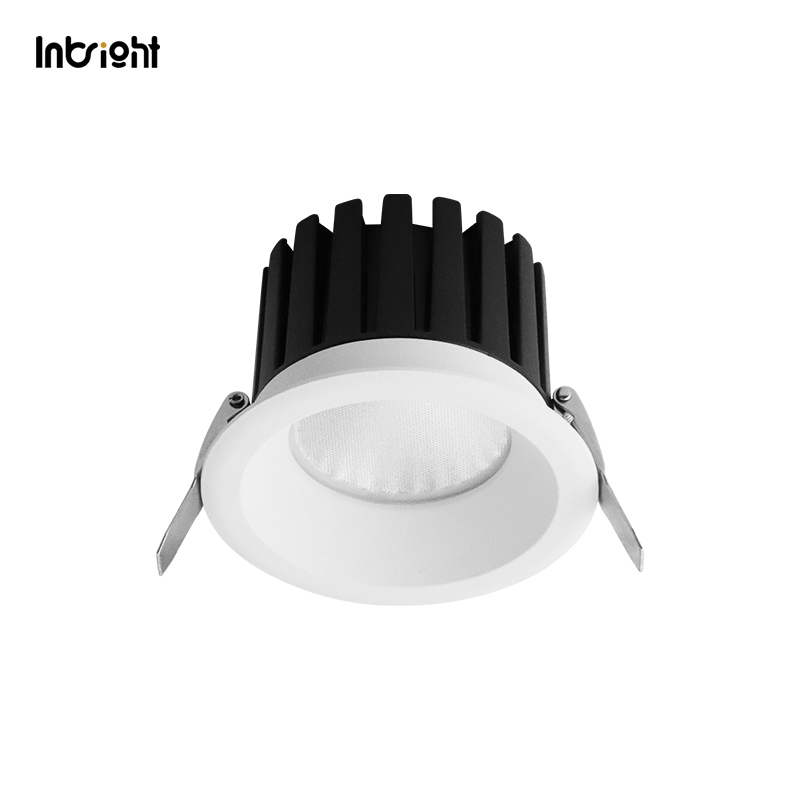

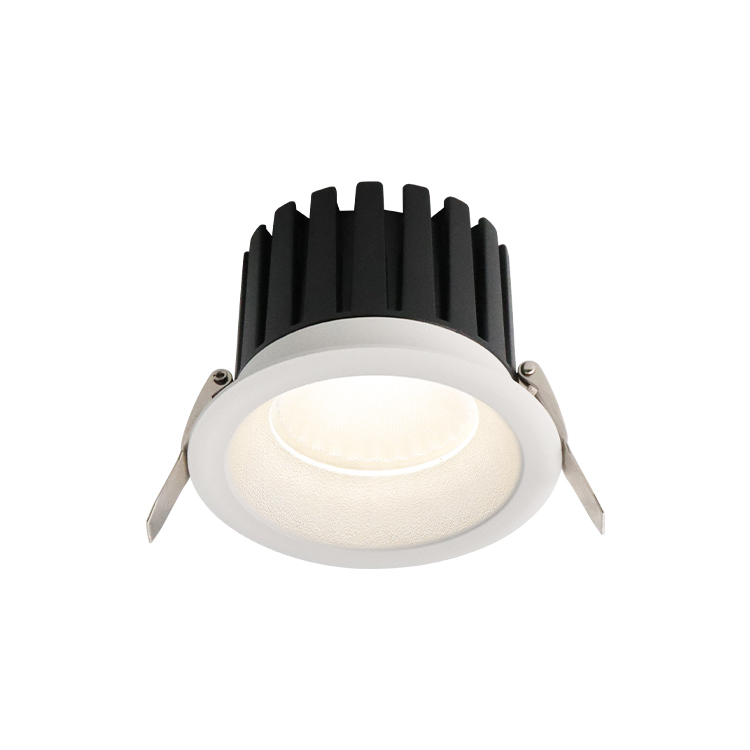

Beam 15°/24°/38°/45°/60° Shallow Trim Recessed LED Downlight

Model No

IBSP115CT075H57

Diemnsion

Ø83mm×H57mm

Cutout

75mm

Application

Guestroom & Suite

Restaurant

Corridor & Hallway

Bathroom & SPA

Power

10W

Beam Angle

15°24°38°45°60°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed MountSurface MountSuspended

Quantity:	- +

Add To Cart Inquiry

Description
Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP115CT075H57	10W	Ø83mmxH57mm	Ø75mm	Reflector 15°\| 24°\|38°\|45°\|60° Fixed
IBSP115CT075H78	15W	Ø83mm×H78mm	Ø75mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° Fixed
IBSP115CT075H105	25W	Ø83mm×H105mm	Ø75mm	Reflector 15°\| 24°\|38°\|45°\|60° Fixed

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Beam Angle

IBSP115CT075H57

10W

Ø83mmxH57mm

Ø75mm

Reflector 15°| 24°|38°|45°|60°

Fixed

IBSP115CT075H78
