Home > Products > LED Downlight Narrow/Medium Beam Series
Click To Enlarge

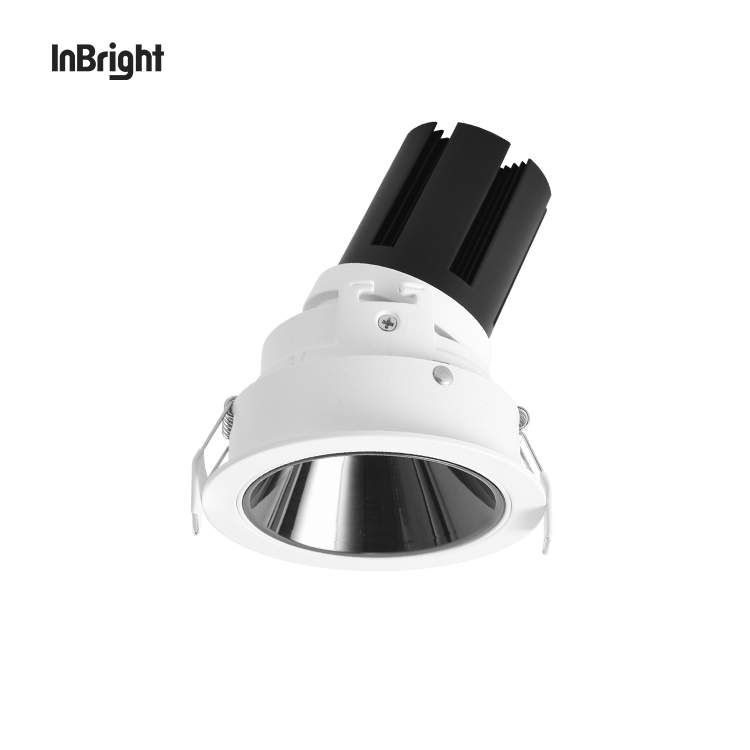

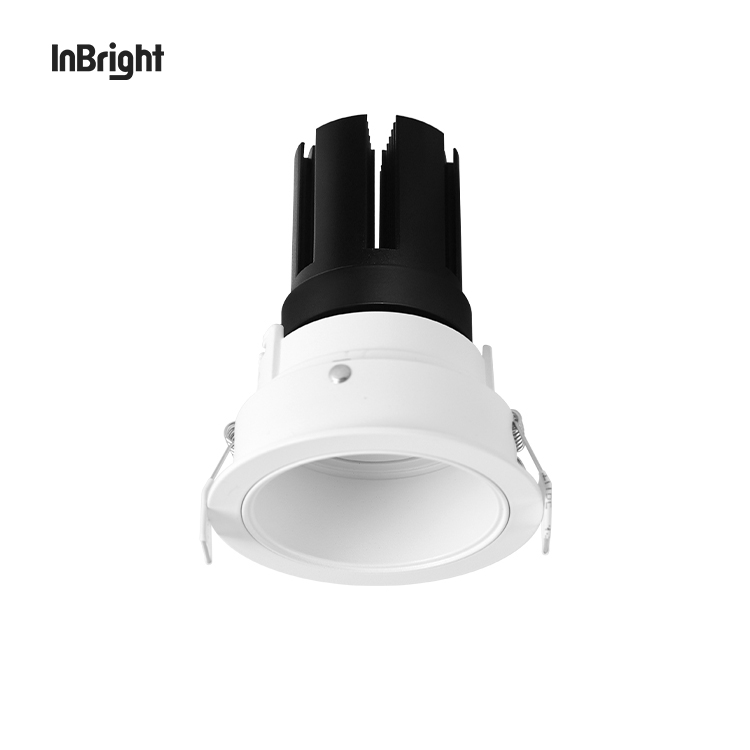

IBSP154
Model No
Diemnsion
Cutout
Application
Power
Beam Angle
Color Temp
CCT
Power Factor
Working Voltage
IP Grade
Dimming Function
LED Chip Optional
LED Driver Optional
Installation
Quantity:
Add To Cart   Inquiry
  • Description
  • Line Art
  • Application
  • IES

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Beam Angle

LED Type & LED driver

IBSP154CT055 8W Ø61×H87mm Ø55mm 15°24°36°55°

• LED Color:2700K|3000K|3500K|4000K|5000K|5700K|6500K
• Body Material：Die-casting Aluminum
• CRI：Ra.80|Ra.90
*** Type E--- Bridgelux chipset LED LM80 listed &
Constant Current LED driver AC100-240V;
Type P1--- CREE LED &Lifud/Eaglerise LED driver AC220-240V;
Type P2--- CREE LED &Lifud LED driver AC100-120V ***

12W Ø61×H106mm 15°24°36°55°
18W Ø61×H126mm 15°24°36°55°
IBSP154CT075 8W Ø81×H97mm Ø75mm 15°24°36°55°
12W Ø81×H112mm 10°15°24°36°55°
18W Ø81×H132mm 10°15°24°36°55°
12W Ø81×H87mm 15°24°36°55°
15W Ø81×H107mm 15°24°36°55°
20W Ø81×H127mm 15°24°36°55°
