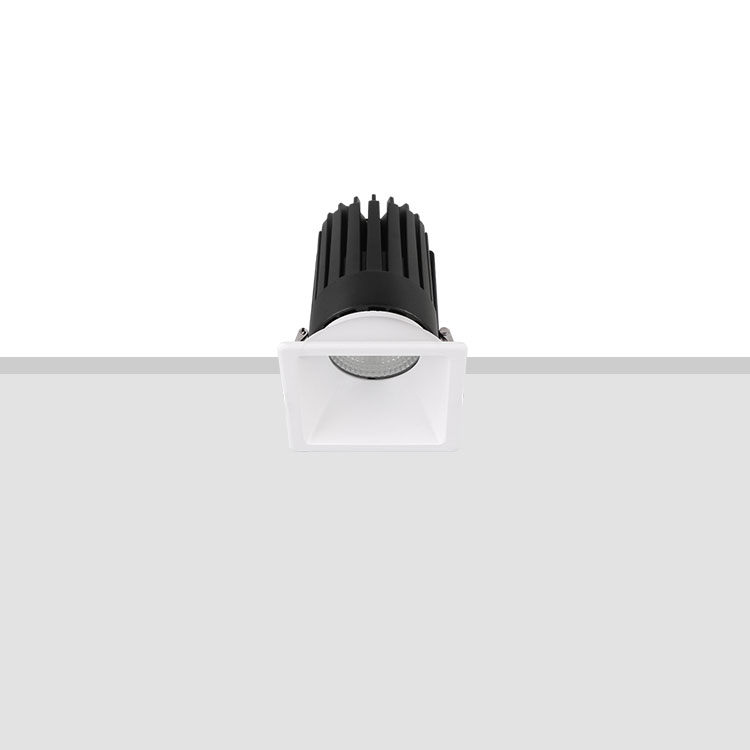

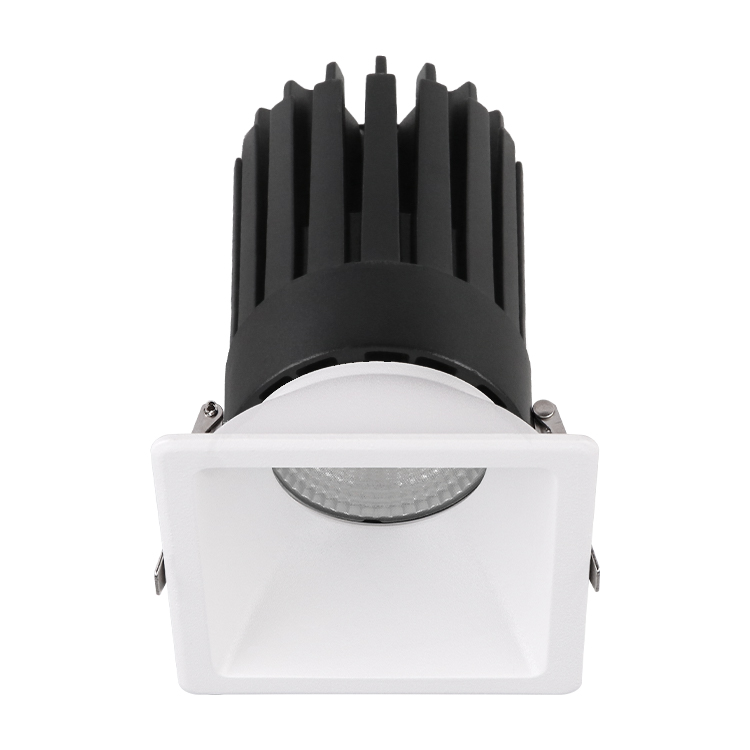

25W,Cutout L75xW75mm,Beam15°/24°/38°/45°/60°,100lm/W,UGR<13,IP65,Safety Glass,Honeycomb Louver Optional,Deep Trim Recessed LED Downlight

Model No

IBSP101SCT075H122

Diemnsion

L85×W85×H122mm

Cutout

75×75mm

Application

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

Power

25W

Beam Angle

15°24°38°45°60°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

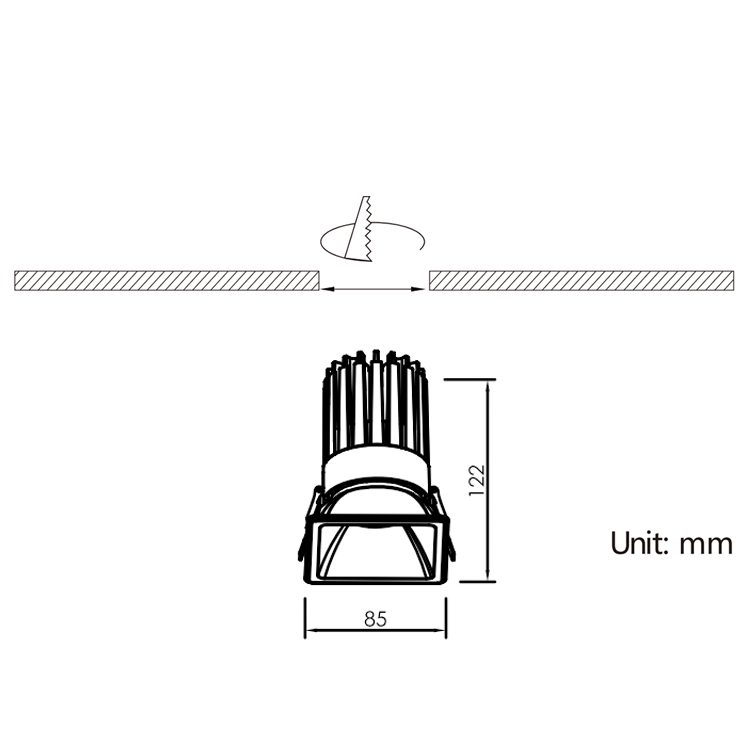

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP101SCT055	8 W	L65×W65×H60mm	L55xW55mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Fixed)
IBSP101SCT075 (H74)	10 W	L85×W85×H76mm	L75xW75mm	Reflector 15°\| 24°\|38°\|45°\|60° (Fixed)
IBSP101SCT075 (H94)	15 W	L85×W85×H76mm	L75xW75mm	Reflector 15°\| 24°\|38°\|45°\|60° (Fixed)
IBSP101SCT075H122	25W	L85×W85×H122mm	L75xW75mm	Reflector 15°\| 24°\|38°\|45°\|60° (Fixed)
IBSP101SCT095	28 W	L105×W105×H108mm	L95xW95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Fixed)
IBSP101SCT095H135	40W	L105×W105×H135mm	L95xW95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Fixed)
