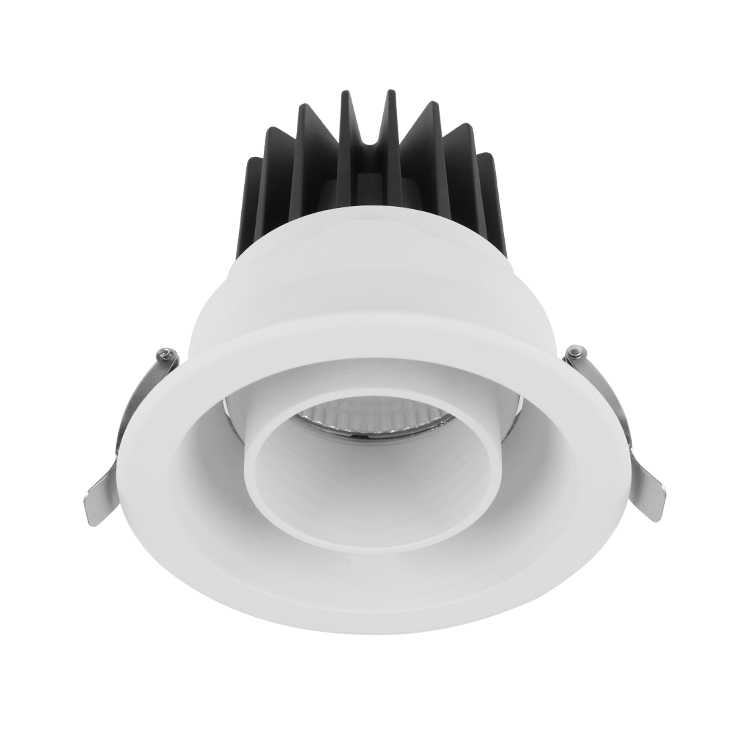

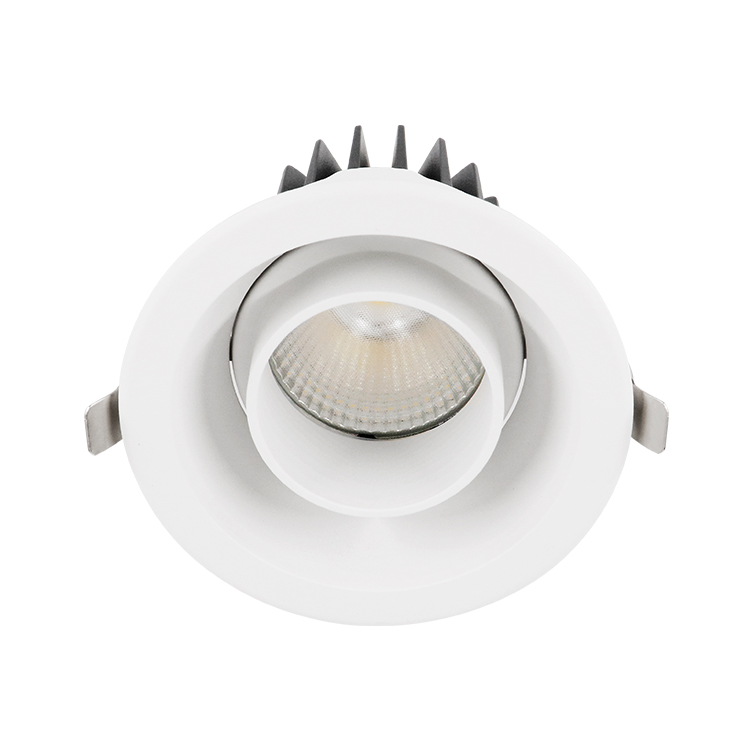

28W,Cutout 120mm,Beam15°/20°/24°/36°/38°/40°/45°/60°,Horizontal 355° + Vertical 30°,IP65,Honeycomb louver Optional,Eyeball Adjustable LED Downlight

Model No

IBSP104CT120-EB

Diemnsion

Ø135mm×H125mm

Cutout

120mm

Application

Guestroom & Suite

Restaurant

Corridor & Hallway

Shop

Power

28W

Beam Angle

15°24°38°45°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle

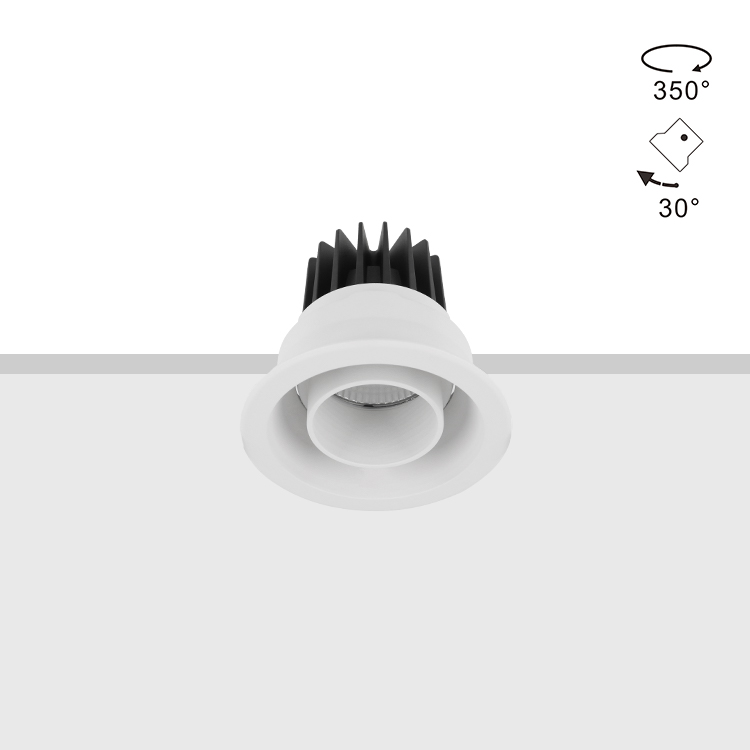

IBSP104CT080-EB	8W	Ø93mm×H85mm	Ø80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT080H86-EB	15W	Ø93mm×H86mm	Ø80mm	Reflector 20°\| 40° Lens 15°\| 24°\|36° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H78-EB	10W	Ø110mm×H78mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H98-EB	15W	Ø110mm×H98mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° Lens15°\| 24°\|38° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT095H124-EB	25W	Ø110mm×H124mm	Ø95mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT120-EB	28W	Ø135mm×H125mm	Ø120mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
IBSP104CT120H140-EB	40W	Ø135mm×H140mm	Ø120mm	Reflector 15°\| 24°\|38°\|45° (Adjustable:horizontal 355°+vertical 30°)
