Click To Enlarge

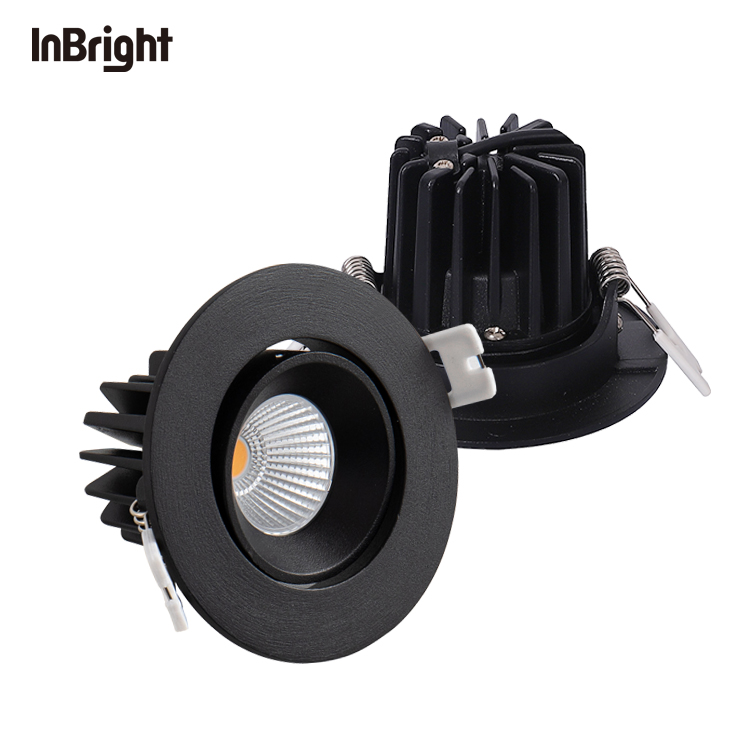

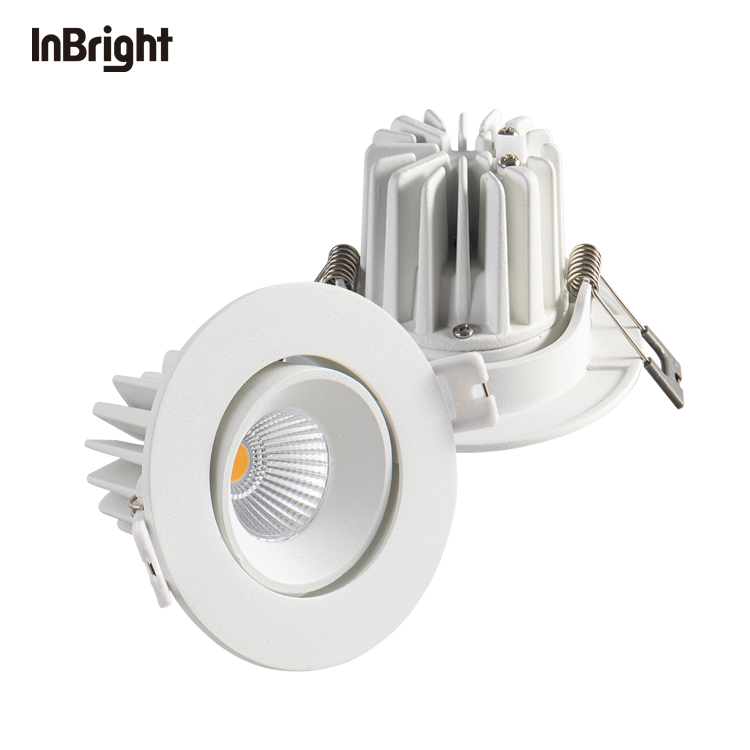

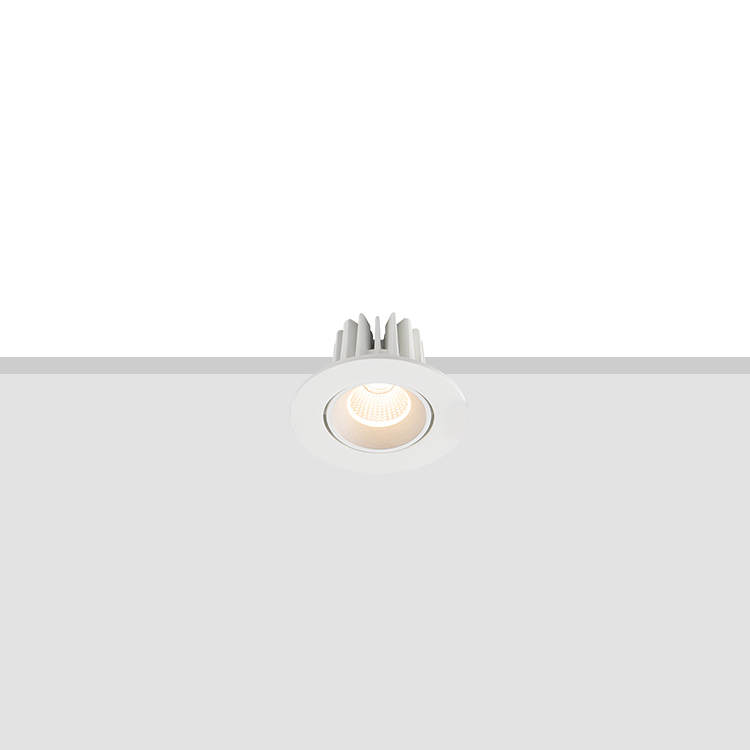

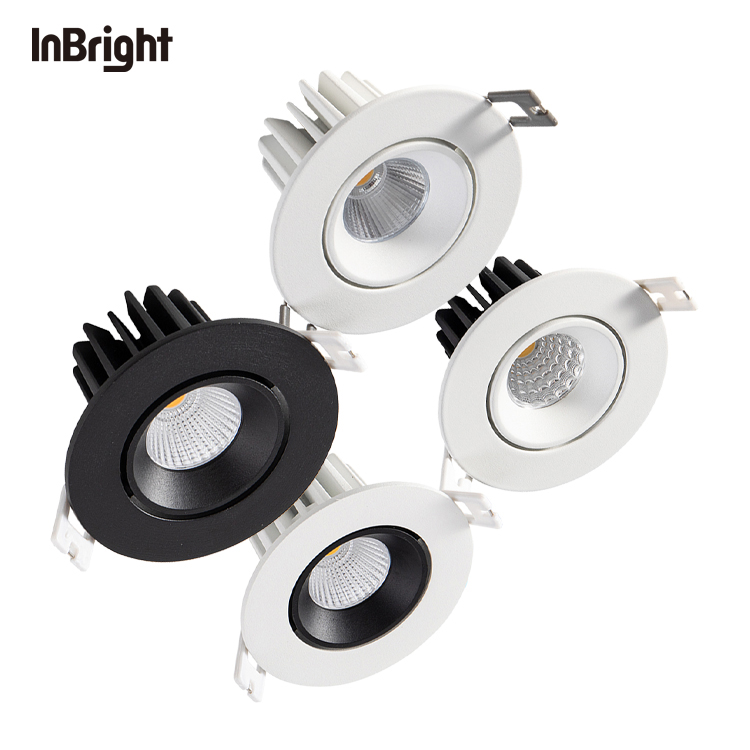

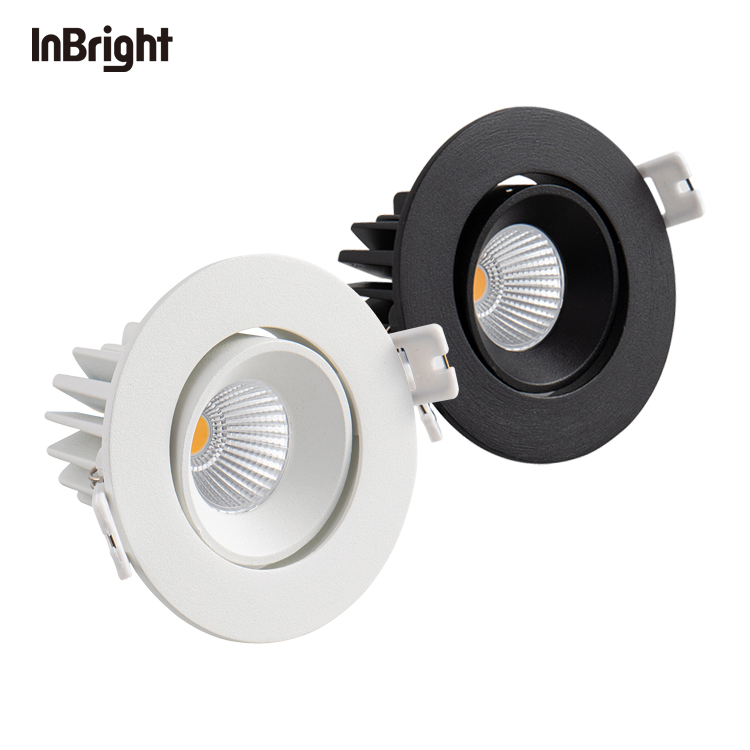

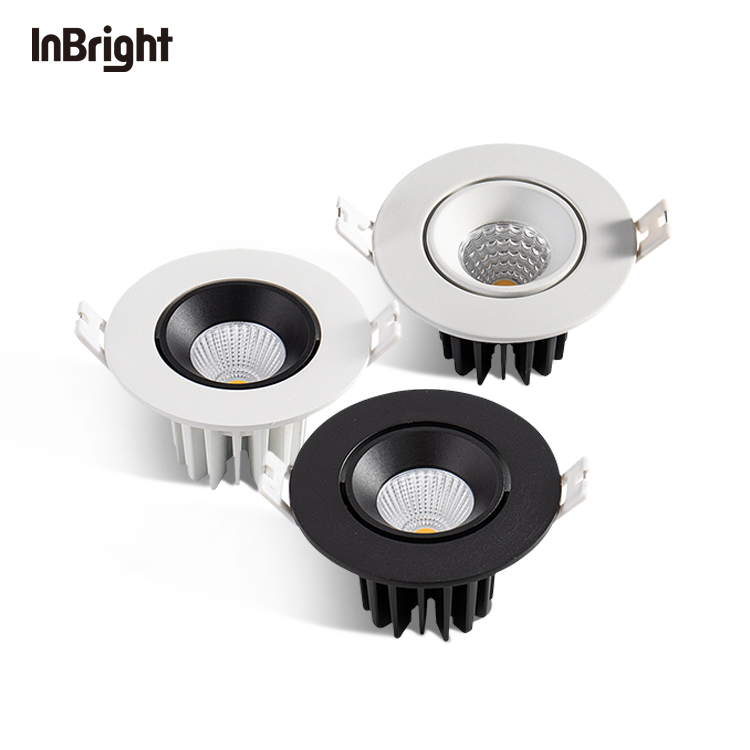

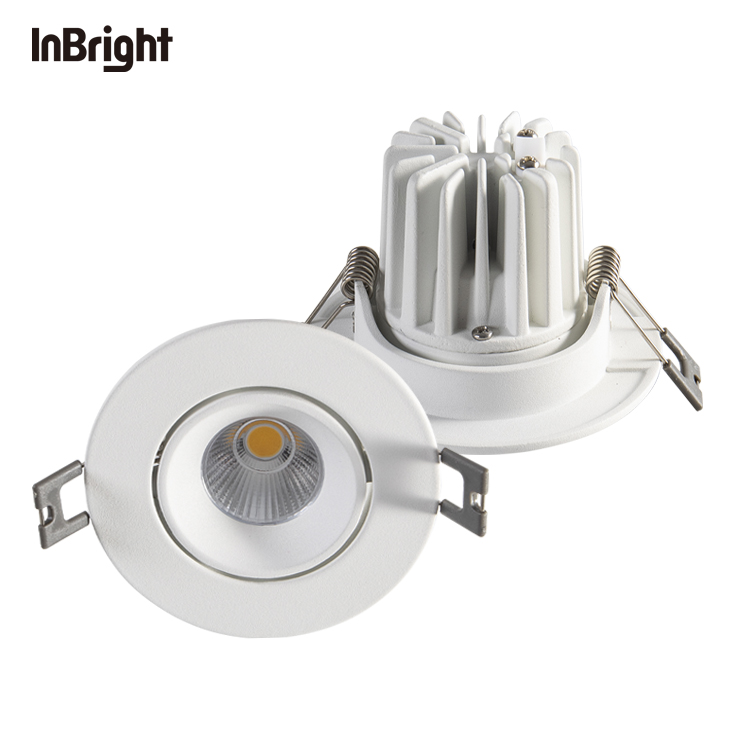

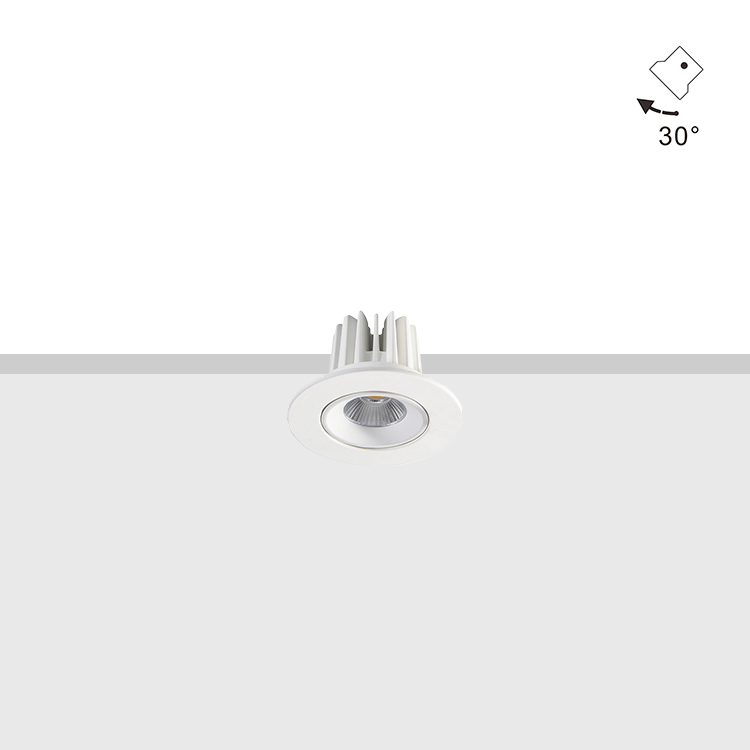

8W,Cutout 70-80mm,Beam 15°| 24°|38°|45°|60°, 30° Vertical Adjustable, IP50,Adjustable Recessed LED Downlight

Model No

IBSP116CT70

Diemnsion

Ø90mm×H53mm

Cutout

70×80mm

Application

Guestroom & Suite

Restaurant

Corridor & Hallway

Power

Beam Angle

15°24°38°Reflector 20°丨40°丨60°丨

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP50

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

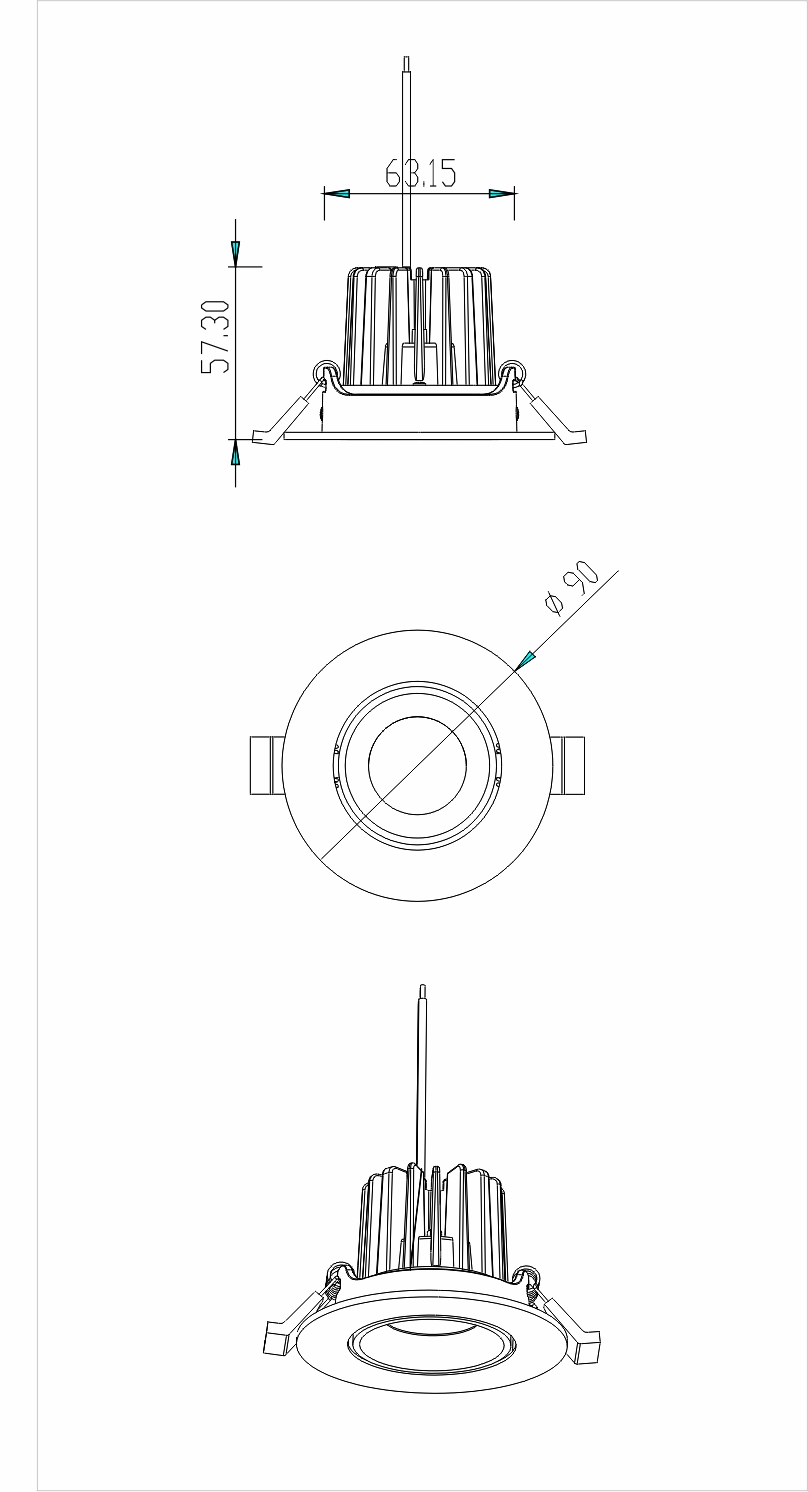

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle	LED Type & LED driver
IBSP116CT70	6 W	Ø90mm×H53mm	Ø70-80mm	20°\| 40°\|60°	• LED Color:2700K\|3000K\|3500K\|4000K\|5000K\|5700K\|6500K • Body Material：Die-casting Aluminum • CRI：Ra.80\|Ra.90 * Type E--- Bridgelux chipset LED LM80 listed & Constant Current LED driver AC100-240V; Type P1--- CREE LED &Lifud/Eaglerise LED driver AC220-240V; Type P2--- CREE LED &Lifud LED driver AC100-120V *
IBSP116CT70	8 W	Ø90mm×H53mm	Ø70-80mm
IBSP117CT70	10 W	Ø90mm×H72mm	Ø70-80mm
IBSP117CT70	12 W	Ø90mm×H72mm	Ø70-80mm

IBSP116CT70 Datasheet.pdf
