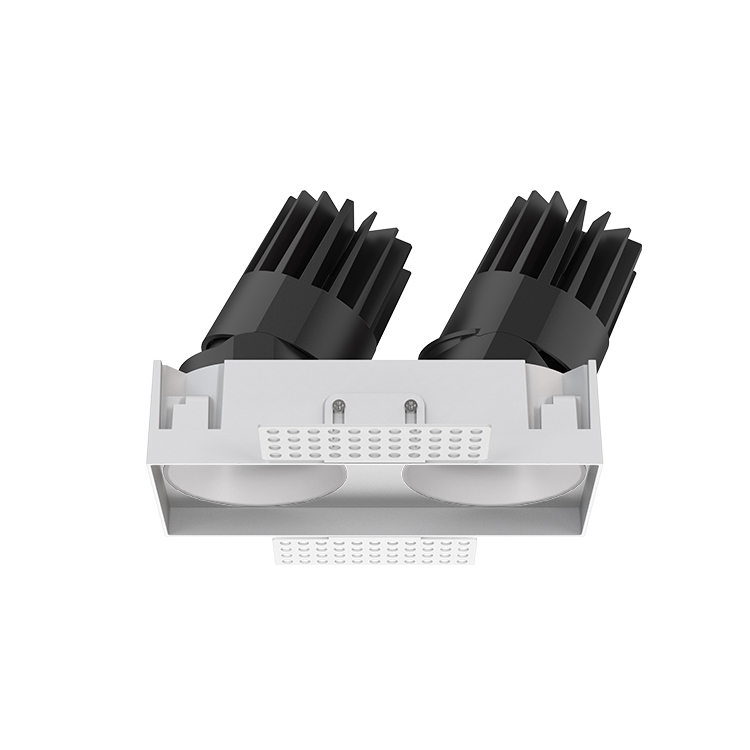

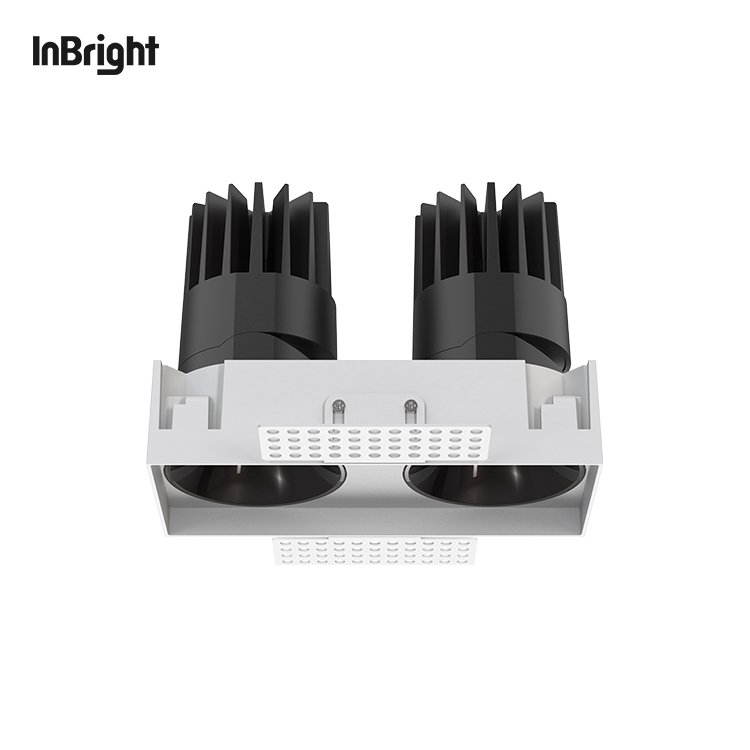

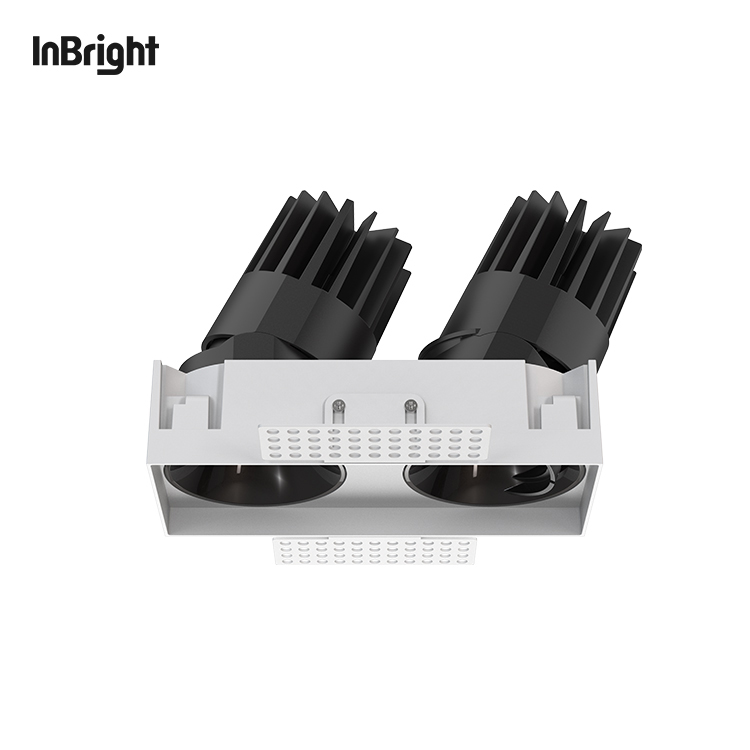

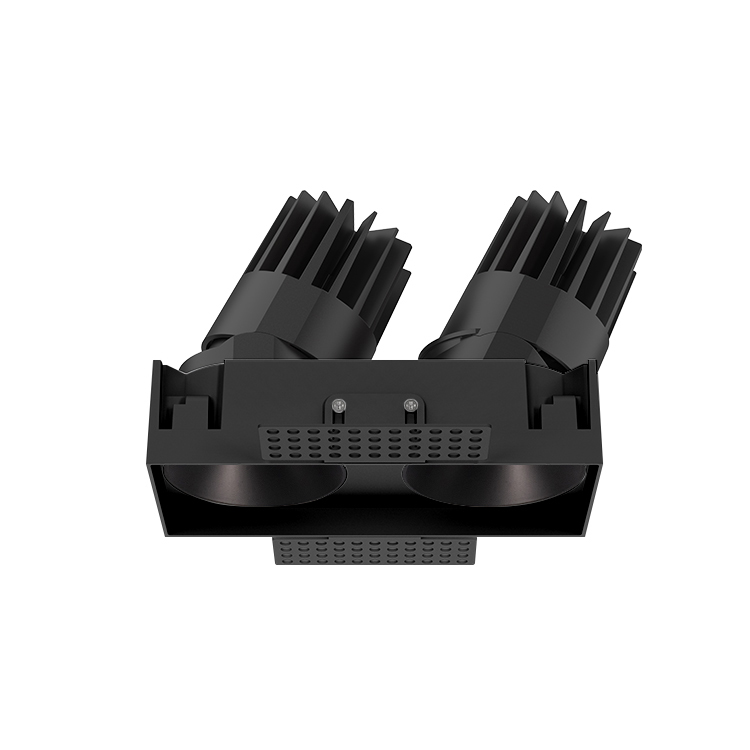

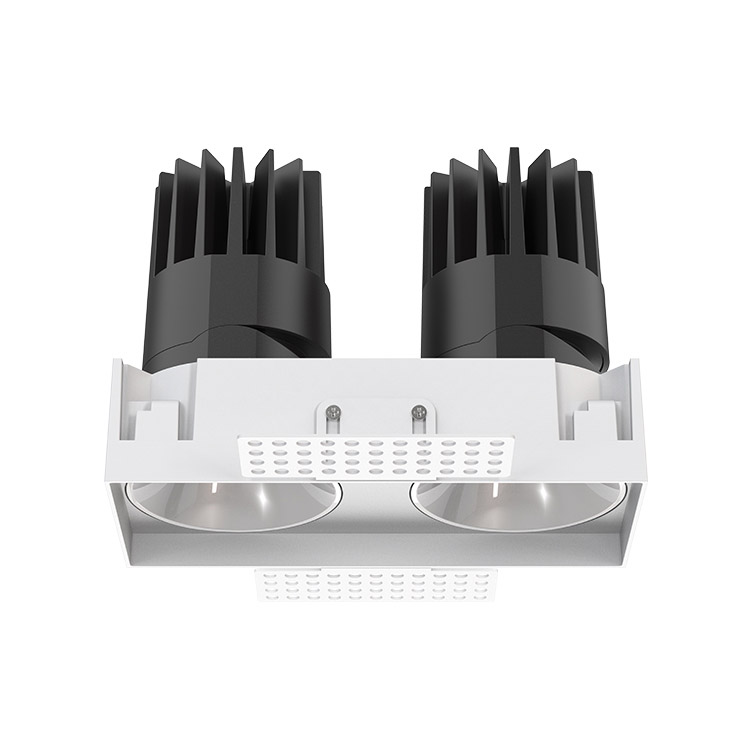

IBSP133SCT055-2H—Beam 15°|24°|38°| 60° IP65 LED Trimless Square Twin Heads Spotlight
Model No
IBSP133SCT055-2H
Diemnsion
L108×W54×H93mm
Cutout
Application
Guestroom & Suite
Lobby & Reception
Conference Room & Office
Corridor & Hallway
Power
2*8W
Beam Angle
15°24°38°60°
Color Temp
2700K3000K3500K4000K5000K5700K6500K
CRI
Ra.80Ra.90Ra.98
Power Factor
PF>0.5PF>0.9
Working Voltage
AC200-240VAC100-277V
IP Grade
IP65
Dimming Function
ON/OFFTriac Dimming0-10V DimmingDALI Dimming
LED Chip Optional
CREEBridgeluxHongliPhilipsOsram
LED Driver Optional
EagelriseLifudOsram
Installation
Recessed Mount
Quantity:
Add To Cart   Inquiry
  • Description

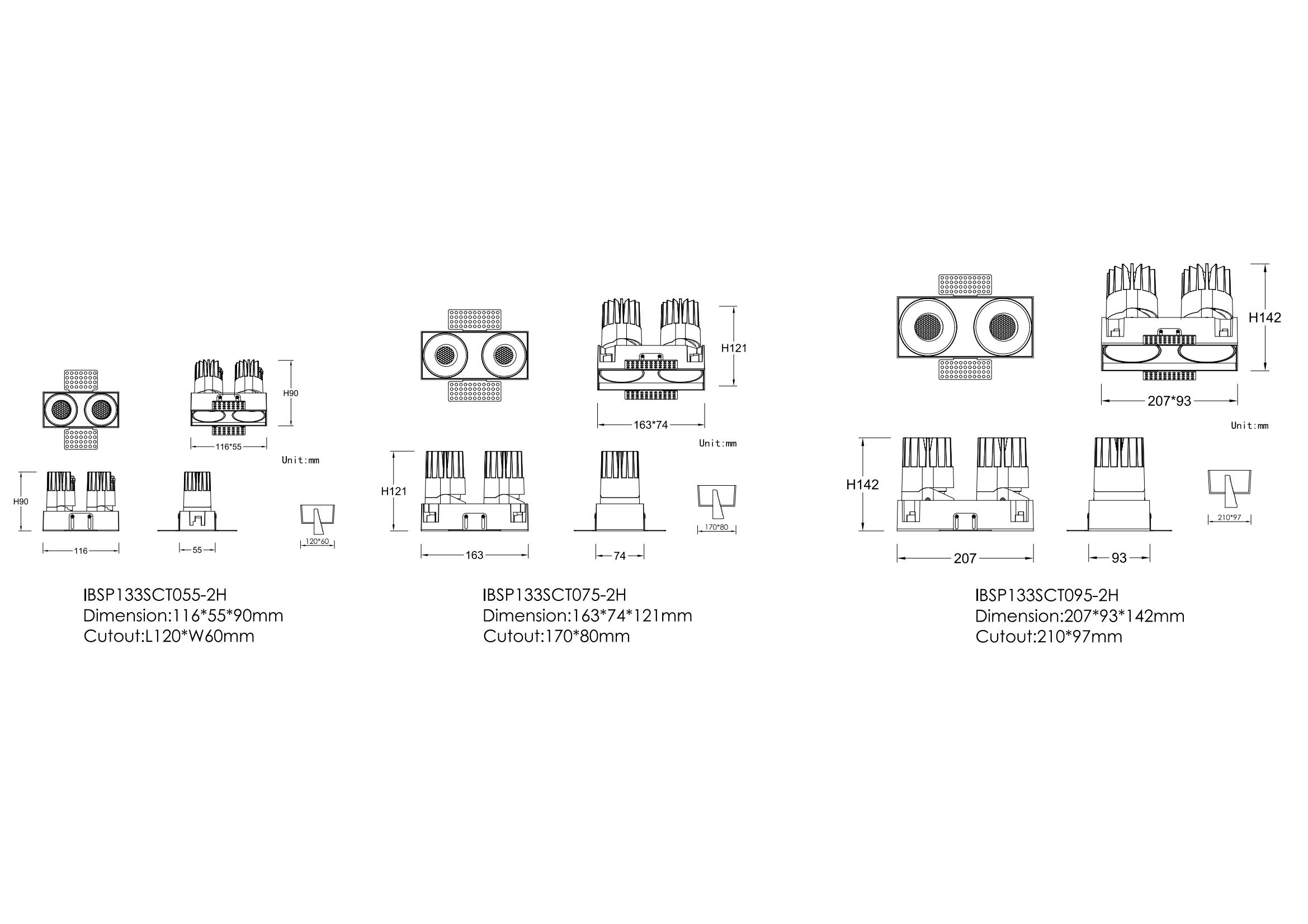

  • Line Art
  • Datasheet
  • IES
Model No.WattsLamp Outer SizeCutout Hole SizeBeam AngleLED Type & LED driver
IBSP133SCT055-2H2×8 WL108×W54×H93mmL111×W56mm15° | 24°|  38°|  60°

•• LED Color:2700K|3000K|3500K|4000K|5000K|5700K|6500K
• Body Material：Die-casting Aluminum
• CRI：Ra.80|Ra.90
*** Type E--- Bridgelux chipset LED LM80 listed &
Constant Current LED driver AC100-240V;
Type P1--- CREE LED &Lifud/Eaglerise LED driver AC220-240V;
Type P2--- CREE LED &Lifud LED driver AC100-120V ***

IBSP133SCT075-2H2×18 WL147×W74×H121mmL150×W77mm
IBSP133SCT095-2H2×25 WL187×W94×H146mmL190×W97mm
