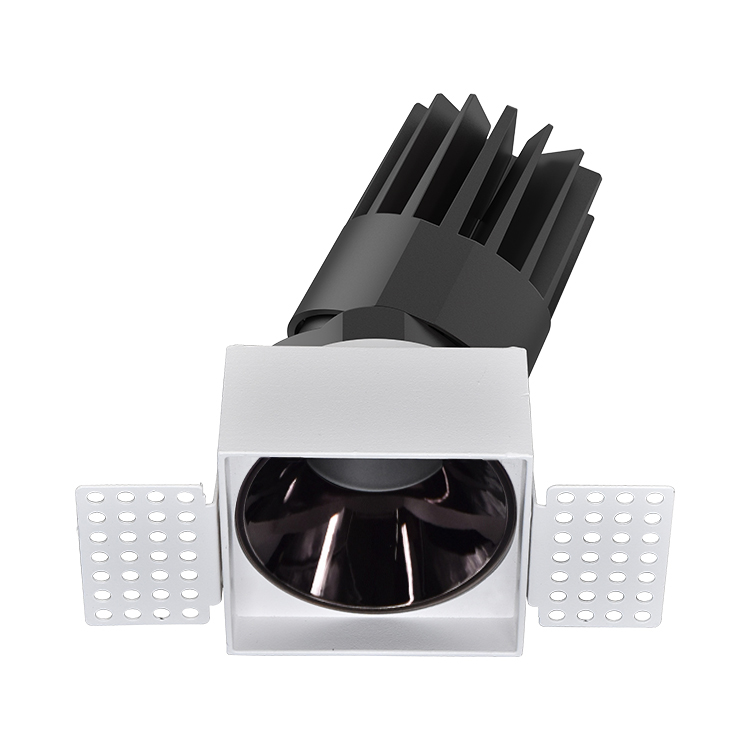

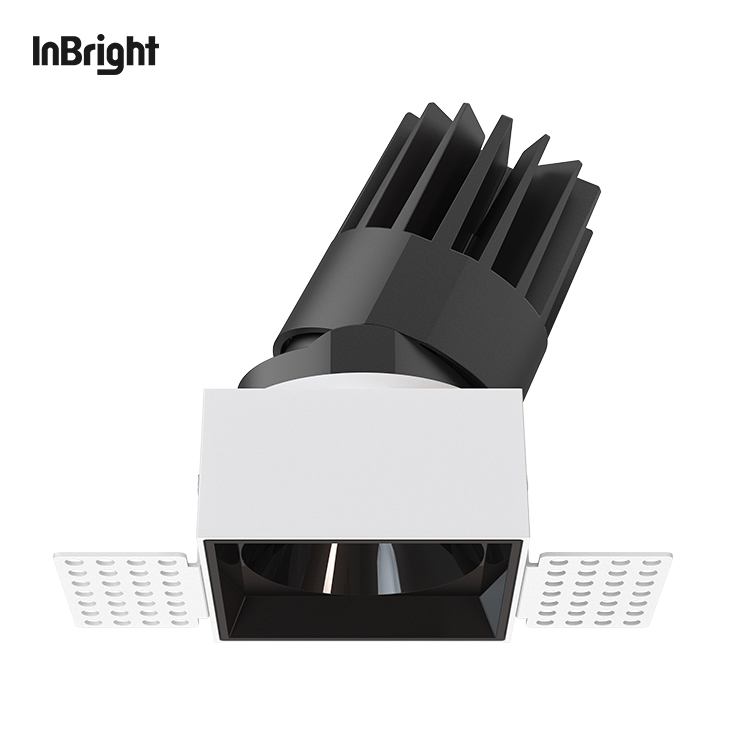

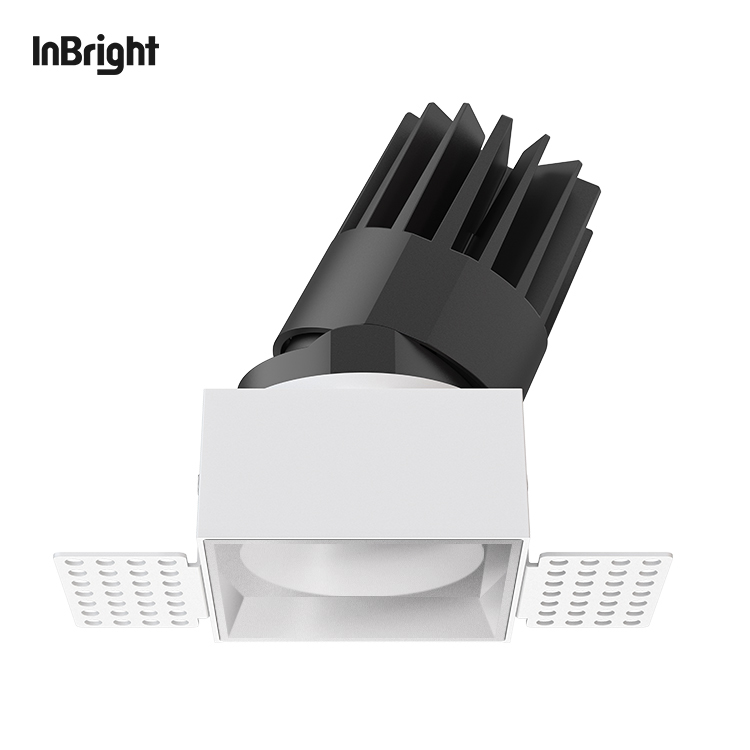

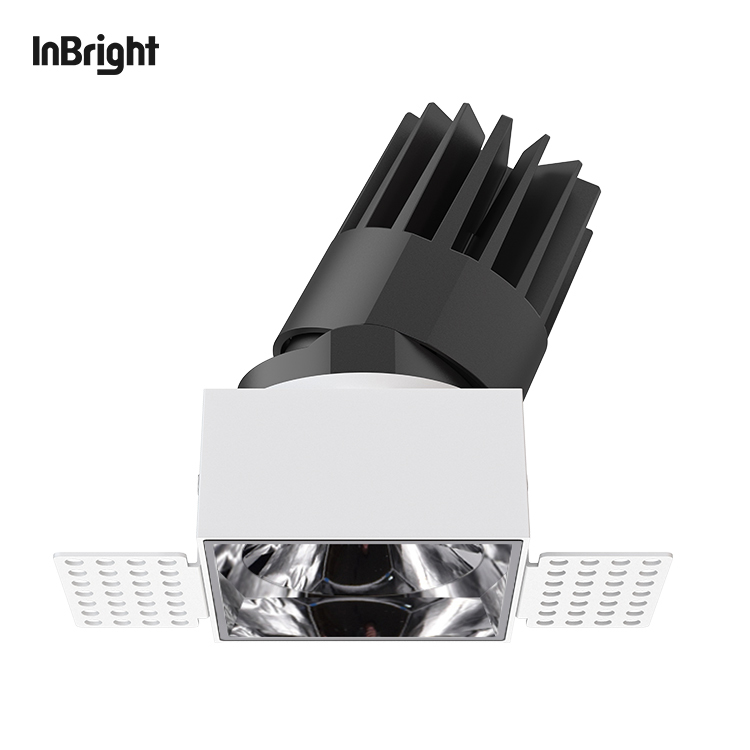

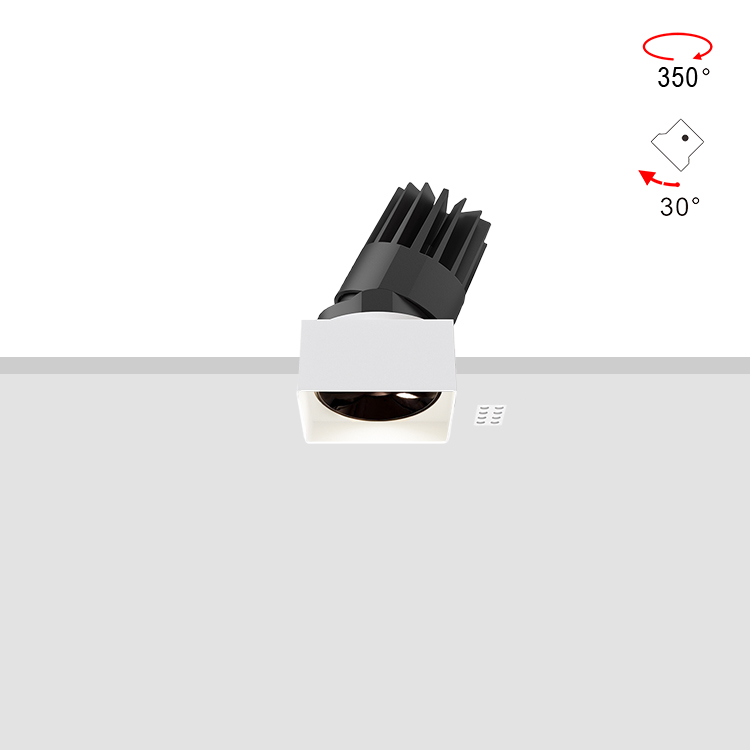

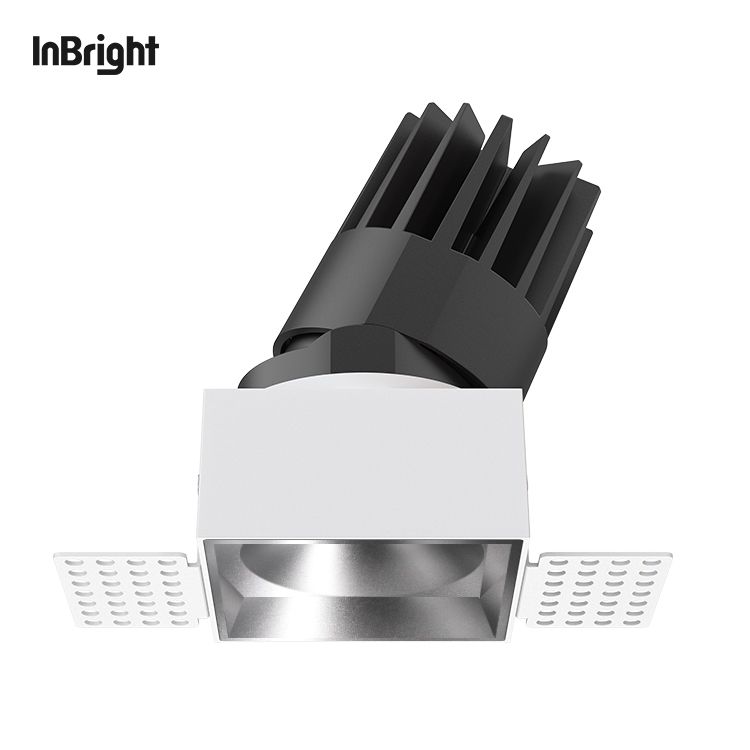

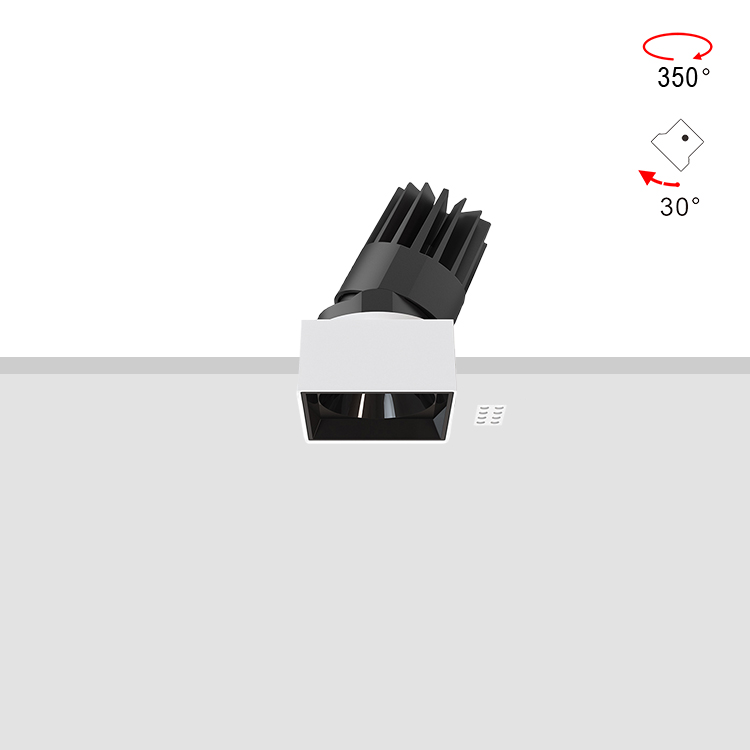

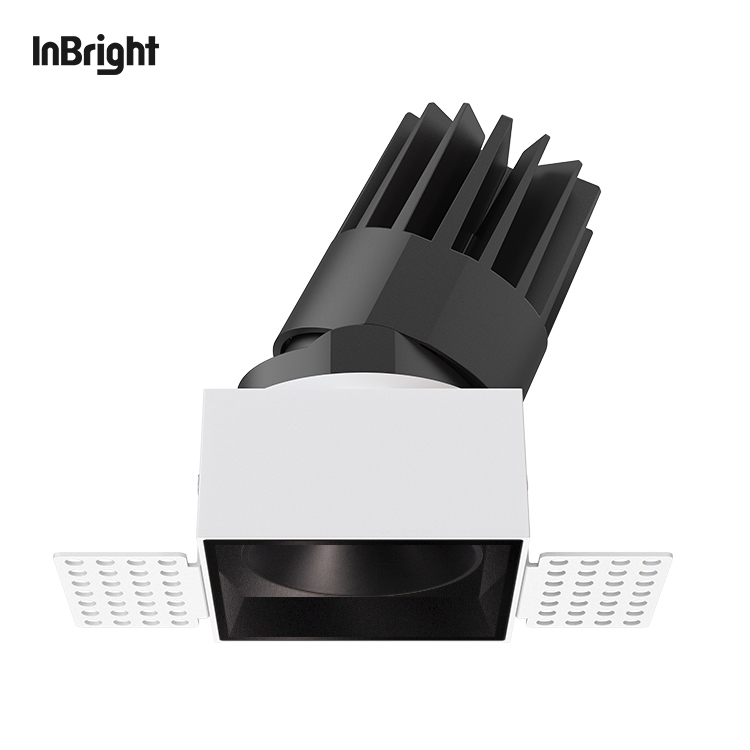

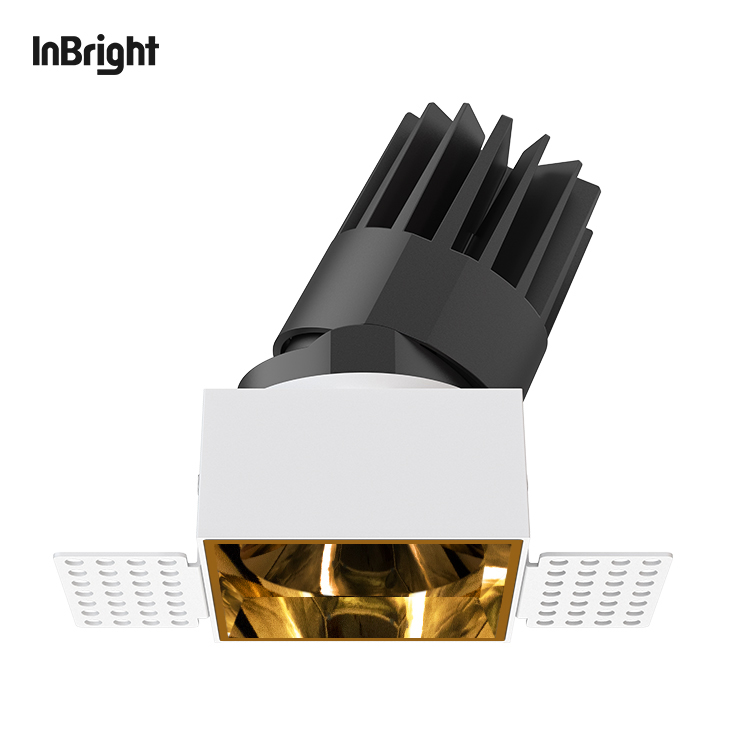

18W,Beam 15°|24°|38°| 60°,Adjustable Horizontal 355° + Vertical 30°,IP65,Honeycomb Louver Optional,Square Trimless LED Downlight
Model No
IBSP133SCT075
Diemnsion
L74×W74×H121mm
Cutout
77×77mm
Application
Guestroom & Suite
Lobby & Reception
Conference Room & Office
Corridor & Hallway
Power
18W
Beam Angle
15°24°38°60°
Color Temp
2700K3000K3500K4000K5000K5700K6500K
CRI
Ra.80Ra.90Ra.98
Power Factor
PF>0.5PF>0.9
Working Voltage
AC200-240VAC100-277V
IP Grade
IP65
Dimming Function
ON/OFFTriac Dimming0-10V DimmingDALI Dimming
LED Chip Optional
CREEBridgeluxHongliPhilipsOsram
LED Driver Optional
EagelriseLifudOsram
Installation
Recessed Mount
Quantity:
Add To Cart   Inquiry
  • Description

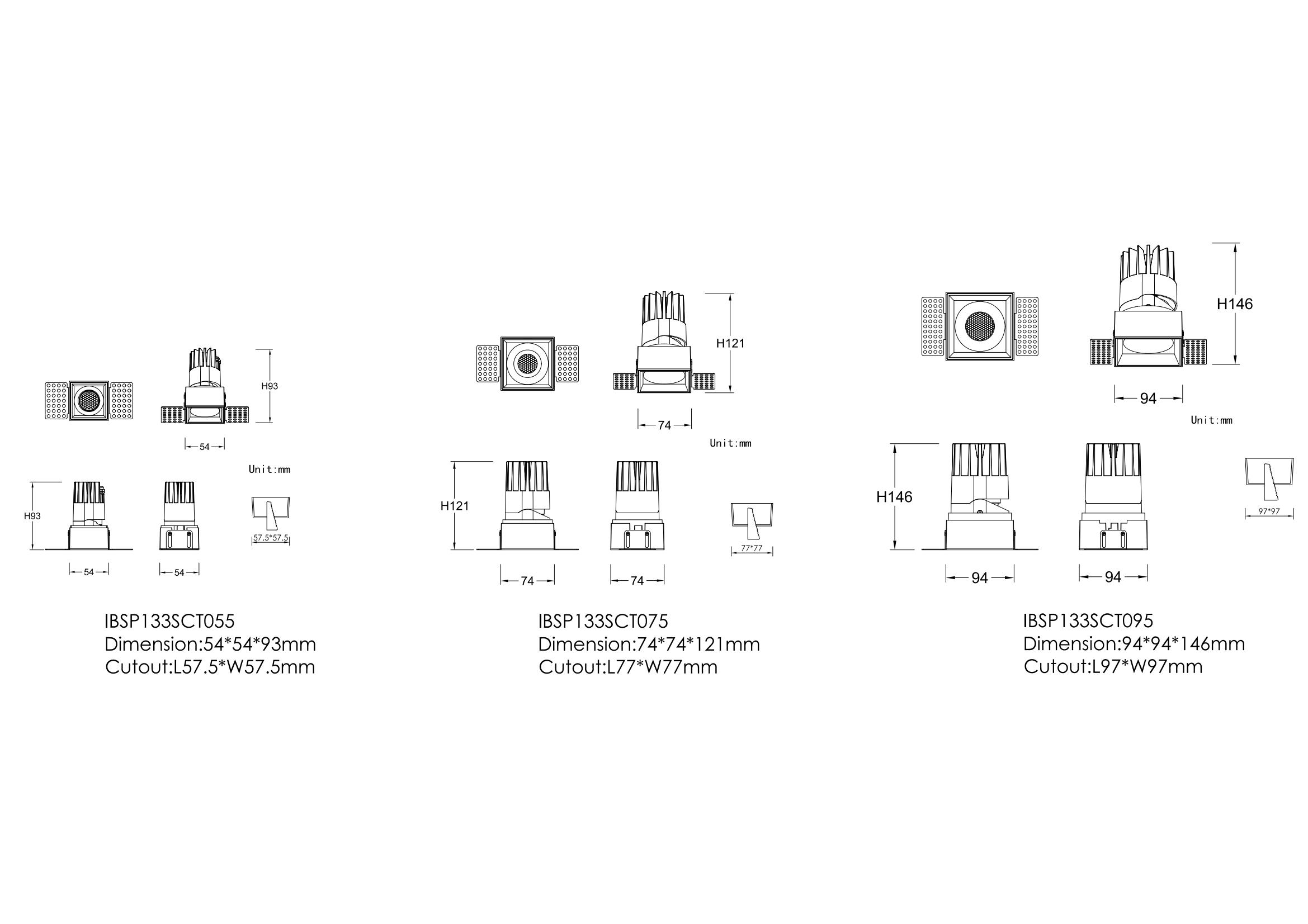

  • Line Art
  • Datasheet
  • IES
Model No.WattsLamp Outer SizeCutout Hole SizeBeam AngleLED Type & LED driver
IBSP133SCT0558 WL54×W54×H93mmL57.5×W57.5mm15° | 24°|  38°|  60°

•• LED Color:2700K|3000K|3500K|4000K|5000K|5700K|6500K
• Body Material：Die-casting Aluminum
• CRI：Ra.80|Ra.90
*** Type E--- Bridgelux chipset LED LM80 listed &
Constant Current LED driver AC100-240V;
Type P1--- CREE LED &Lifud/Eaglerise LED driver AC220-240V;
Type P2--- CREE LED &Lifud LED driver AC100-120V ***

IBSP133SCT07518 WL74×W74×H121mmL77×W77mm
IBSP133SCT09525 WL94×W94×H146mmL97×W97mm

IBSP133S Datasheet.pdf
