Click To Enlarge

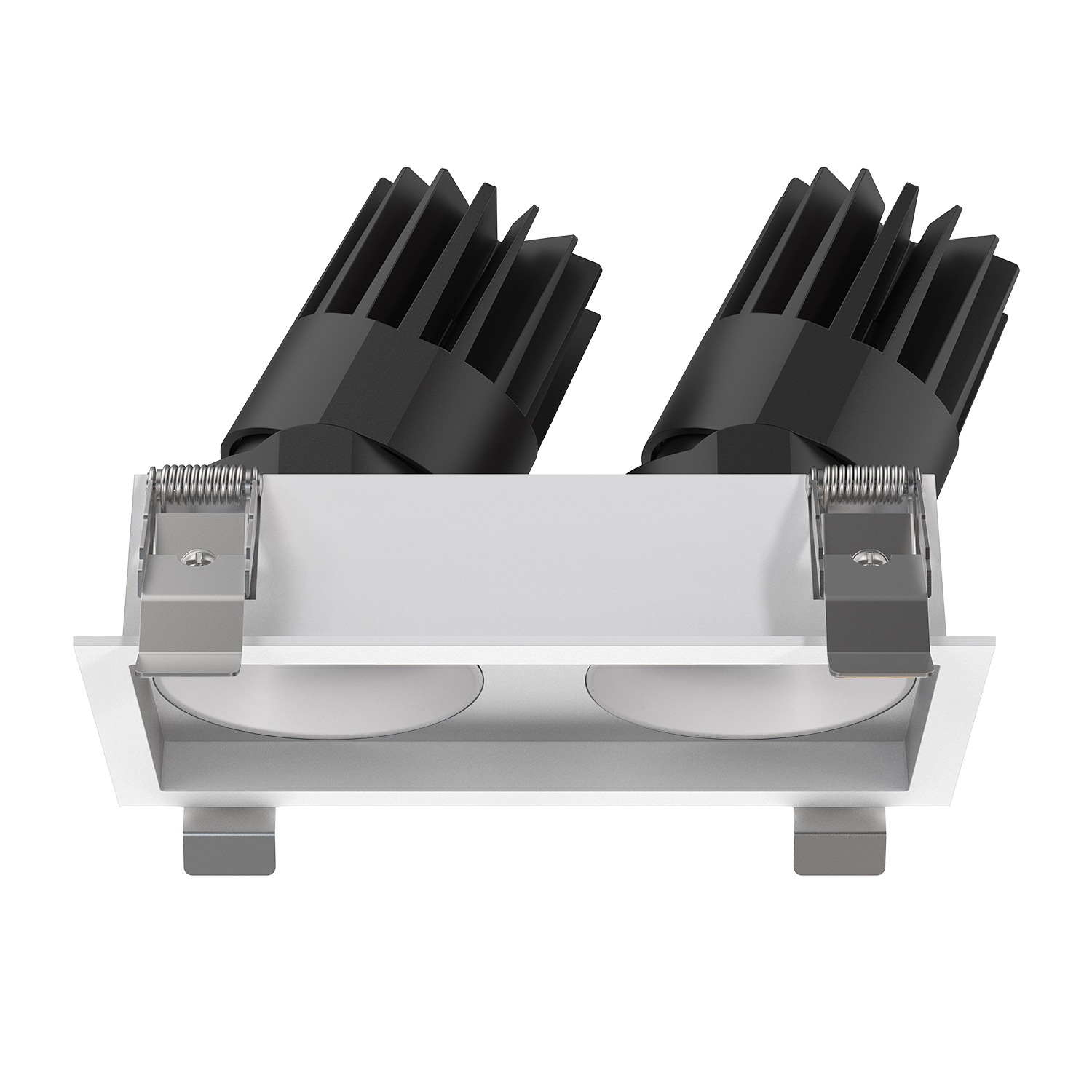

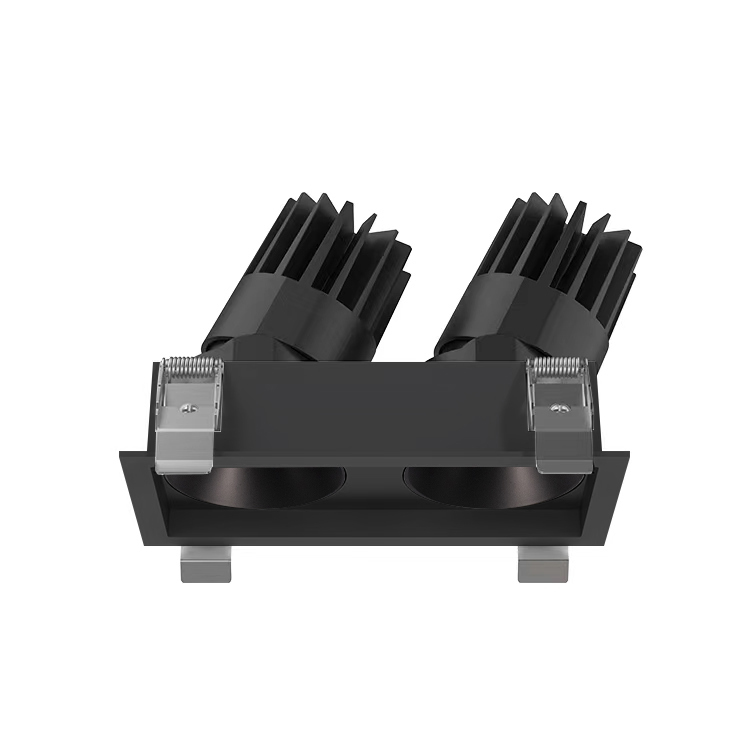

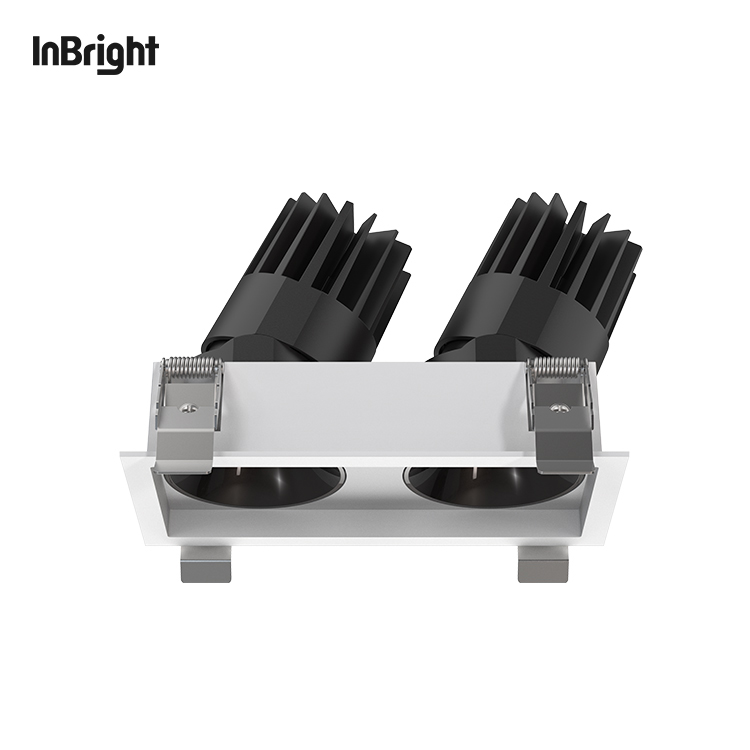

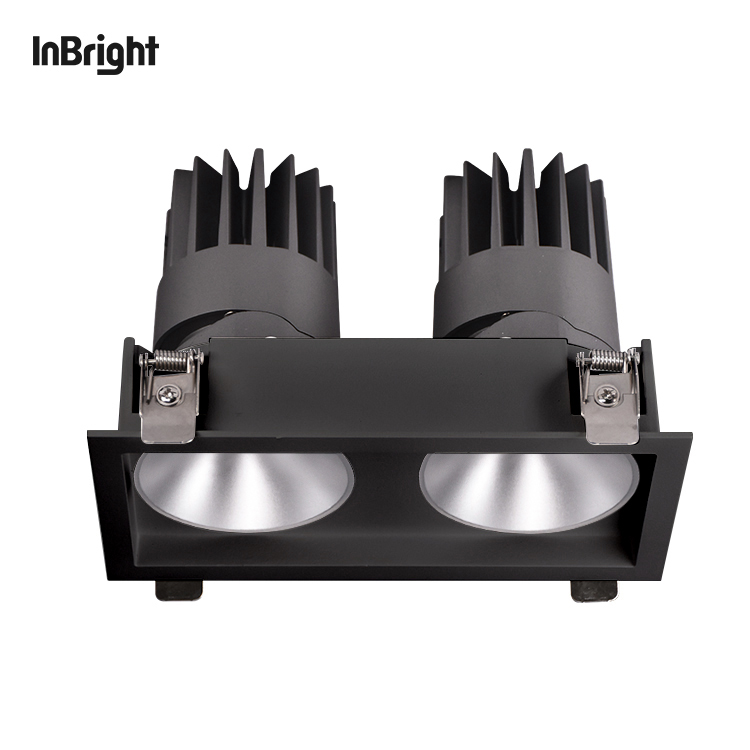

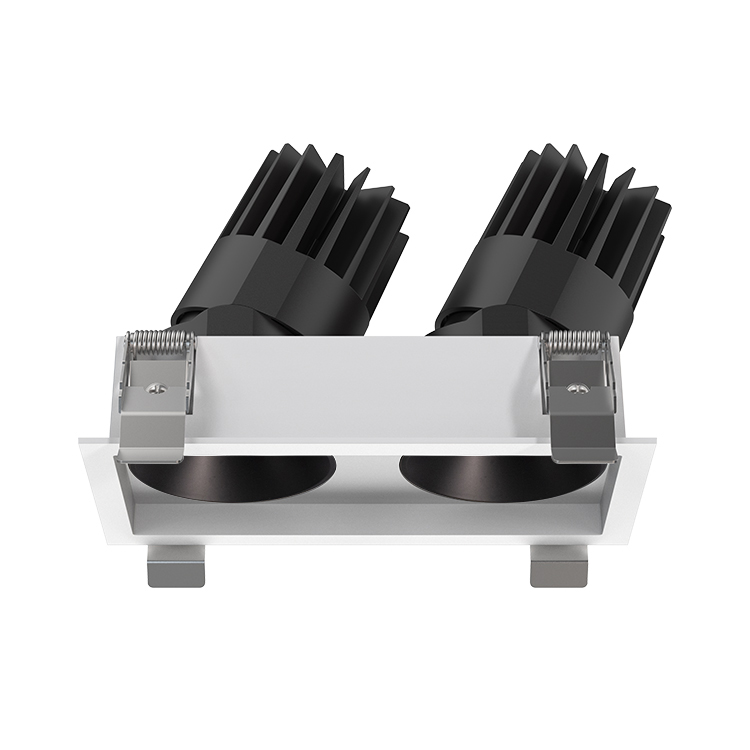

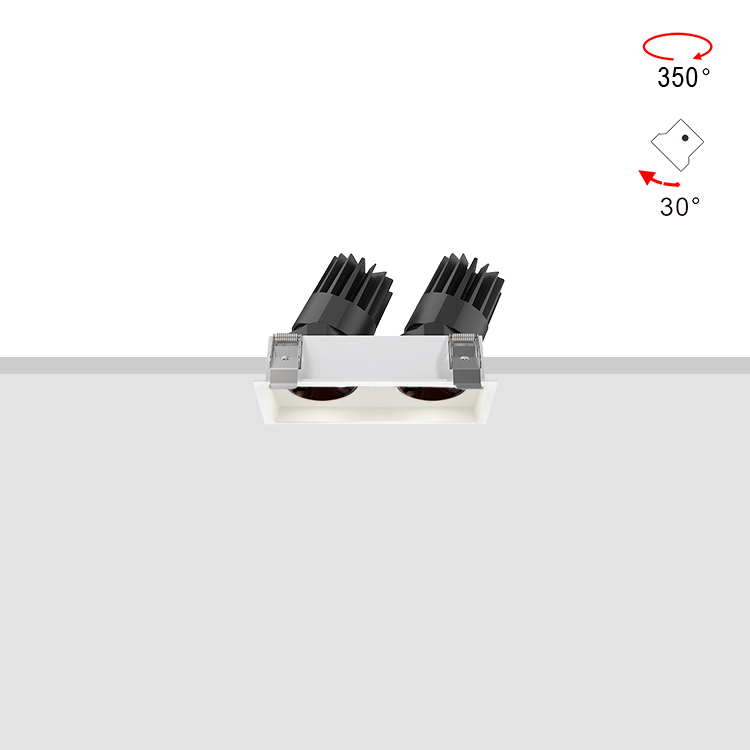

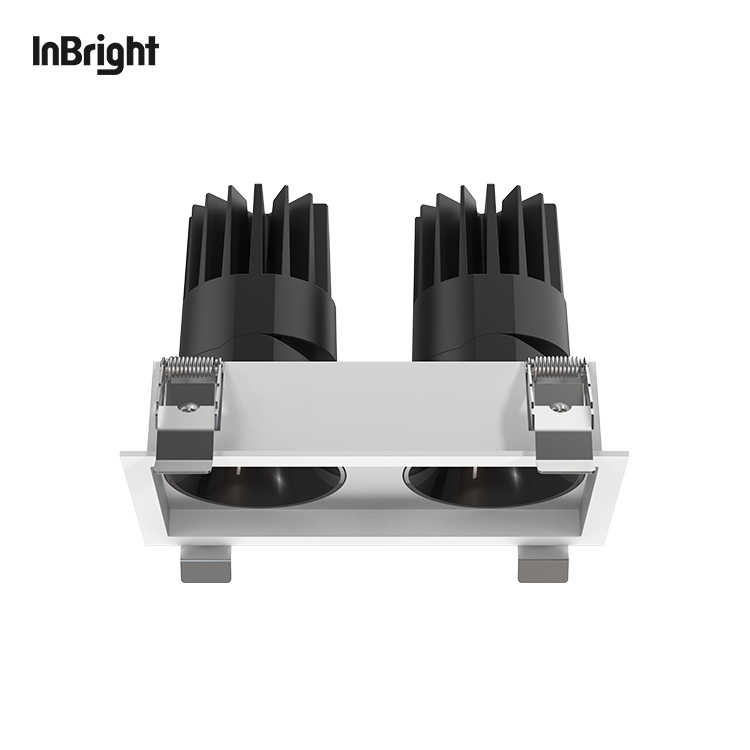

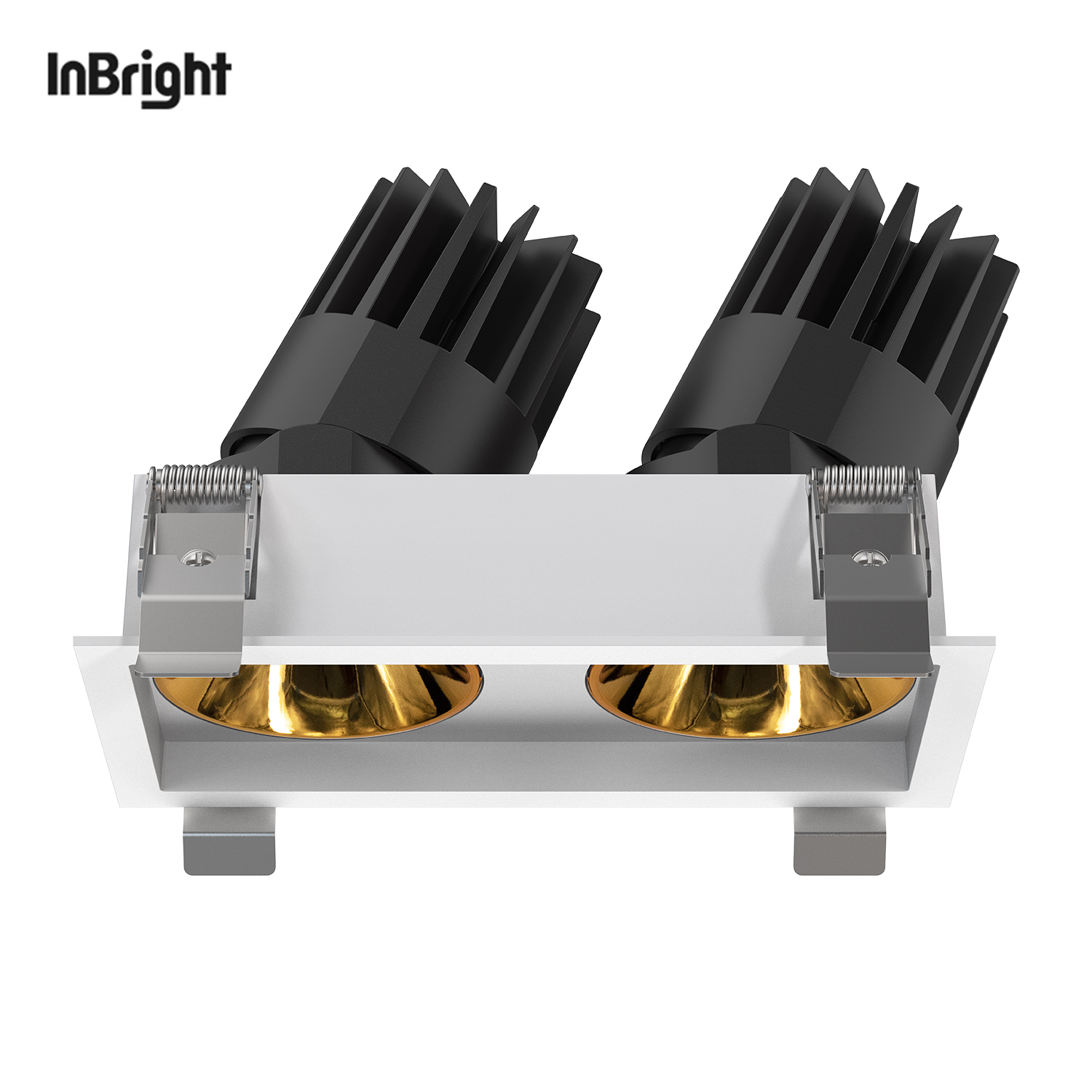

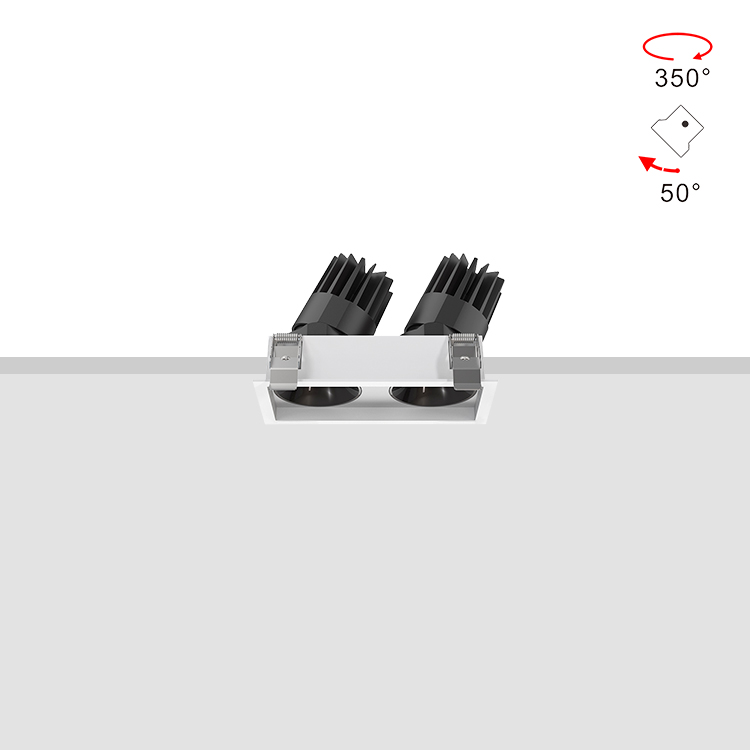

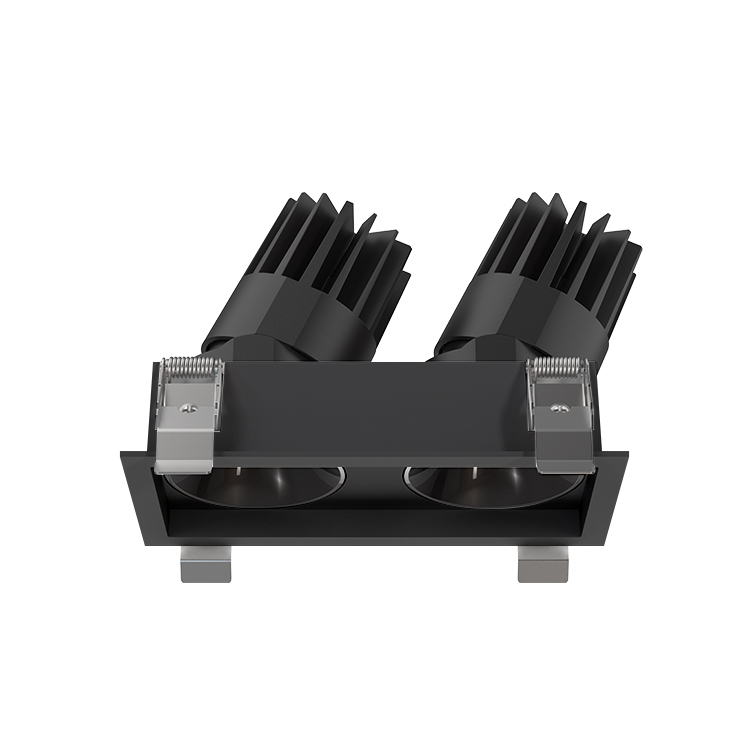

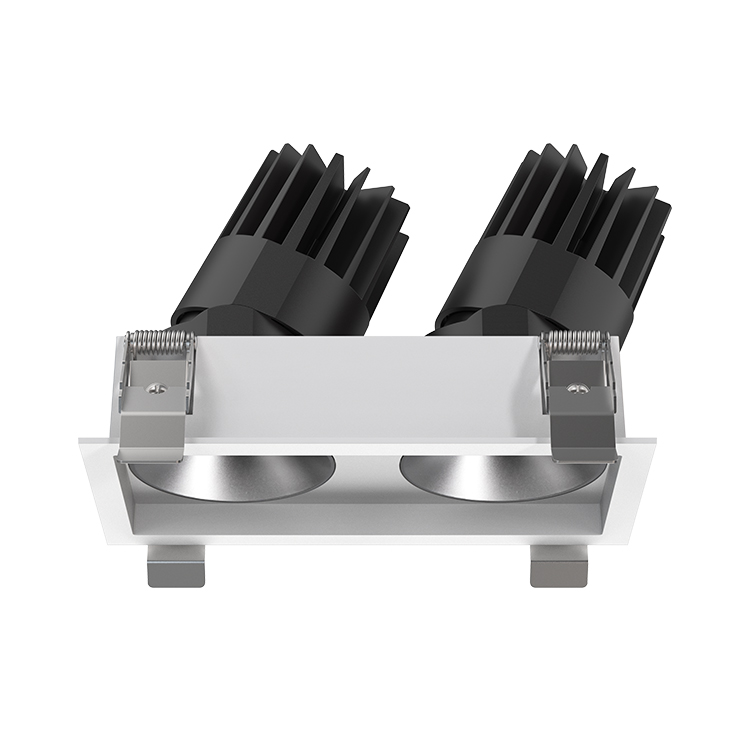

2x8W,Cutout 122x60mm,Beam 15°|24°|38°| 60°,Adjustable Horizontal 355° + Vertical 30°,IP65,Honeycomb Louver Optional,LED Downlight

Model No

IBSP135SCT055-2H

Diemnsion

L117×W64×H93mm

Cutout

122×60mm

Application

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Power

2*8W

Beam Angle

15°24°38°60°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

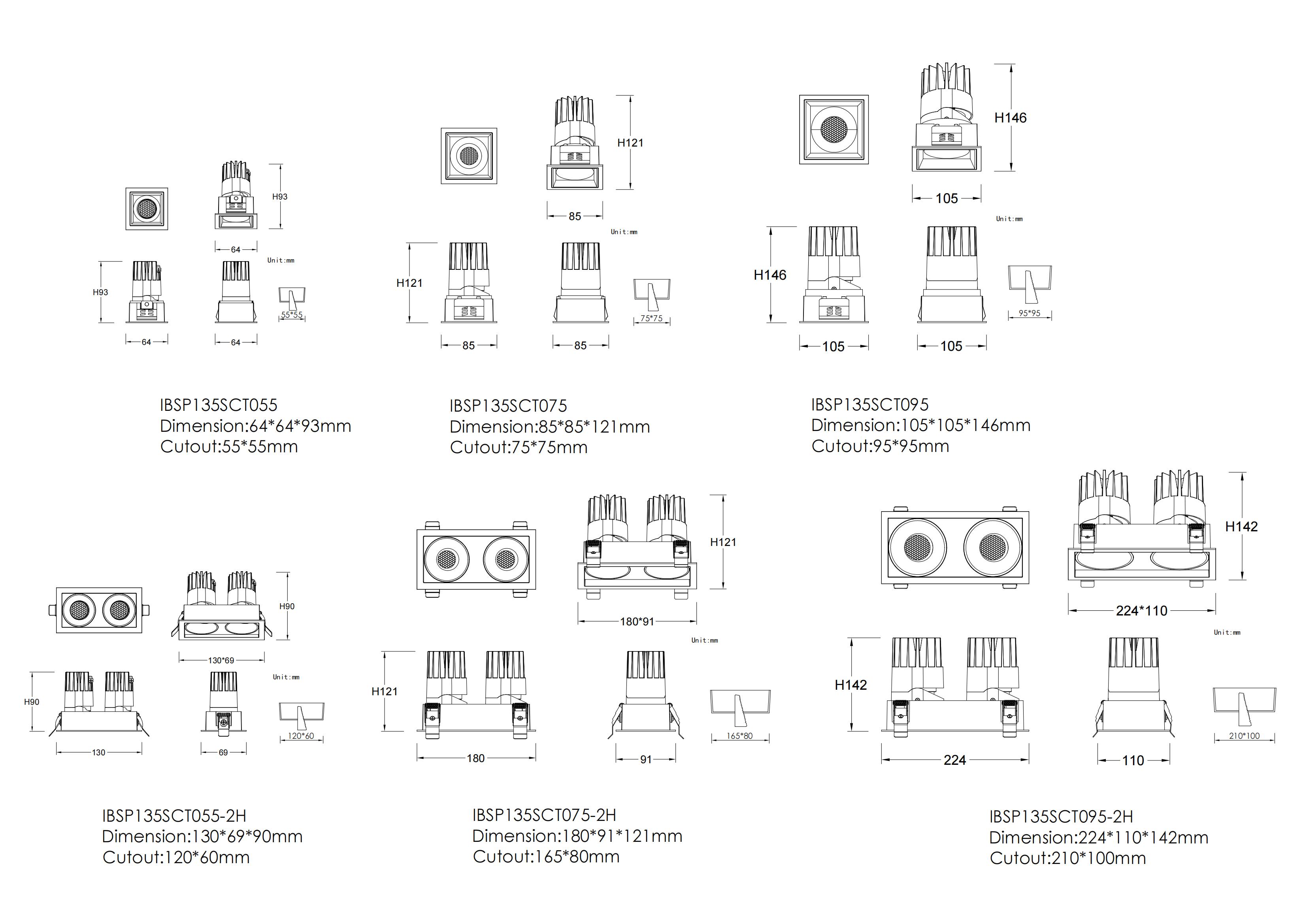

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle	LED Type & LED driver
IBSP135SCT055-2H	2×8 W	L130×W69×H90mm	L120×W60mm	15° \| 24°\| 38°\| 60°	• LED Color:2700K\|3000K\|3500K\|4000K\|5000K\|5700K\|6500K • Body Material：Die-casting Aluminum • CRI：Ra.80\|Ra.90 *** Type E--- Hongli COB LED & Constant Current LED driver AC100-240V; Type P1--- Cree COB LED & Eaglerise ECO LED driver AC220-240V;
IBSP135SCT075-2H	2×18 W	L180×W91×H121mm	L165×W80mm
IBSP135SCT095-2H	2×25 W	L224×W110×H142mm	L210×W100mm

IBSP135S Datasheet.pdf
