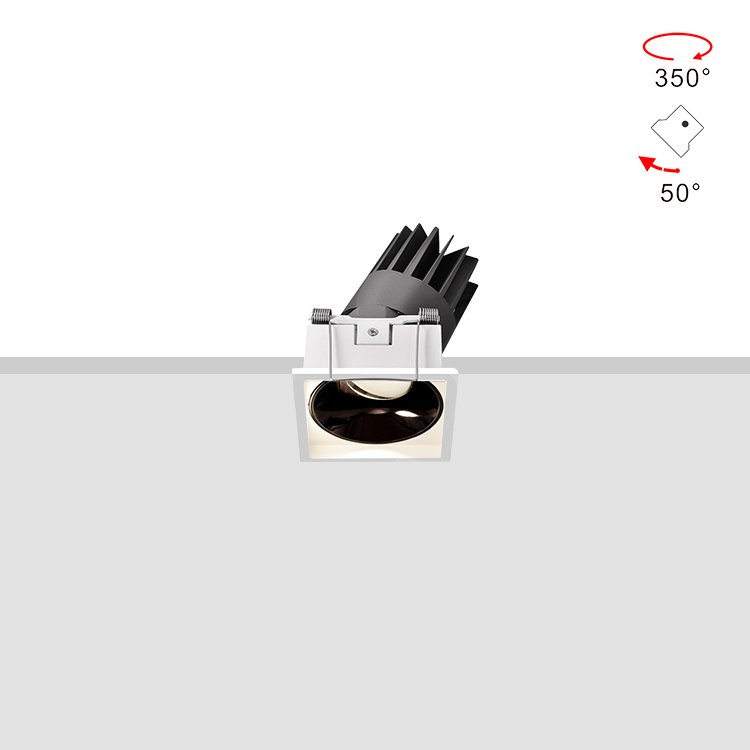

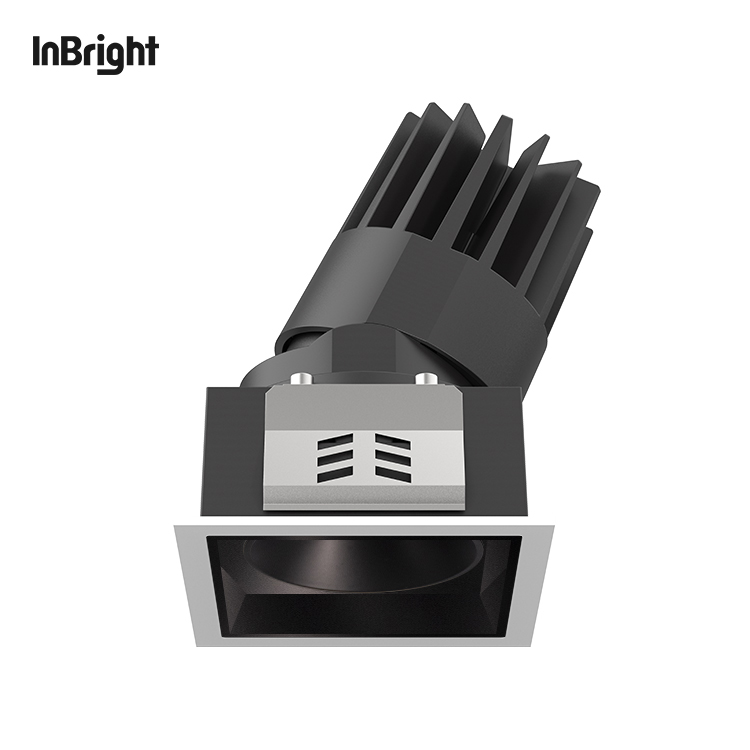

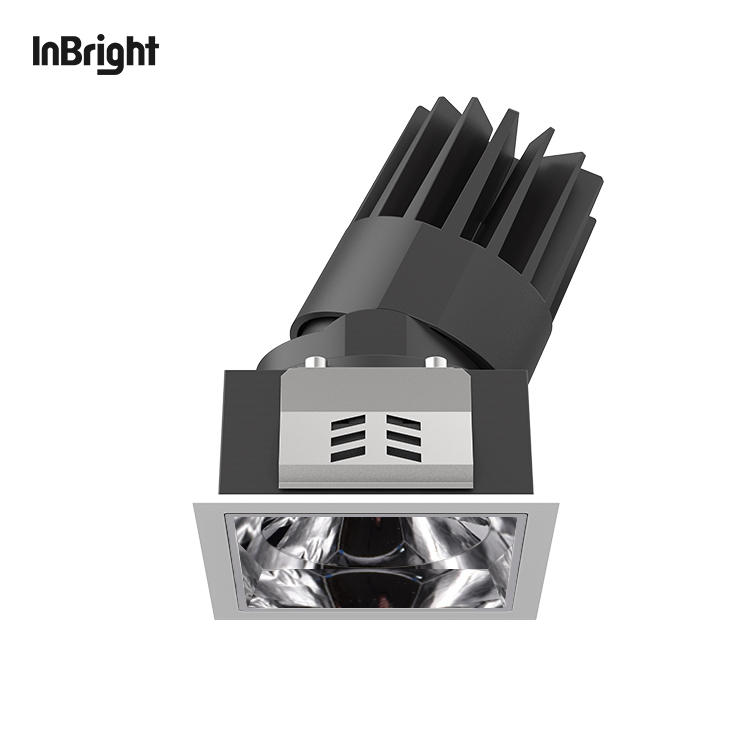

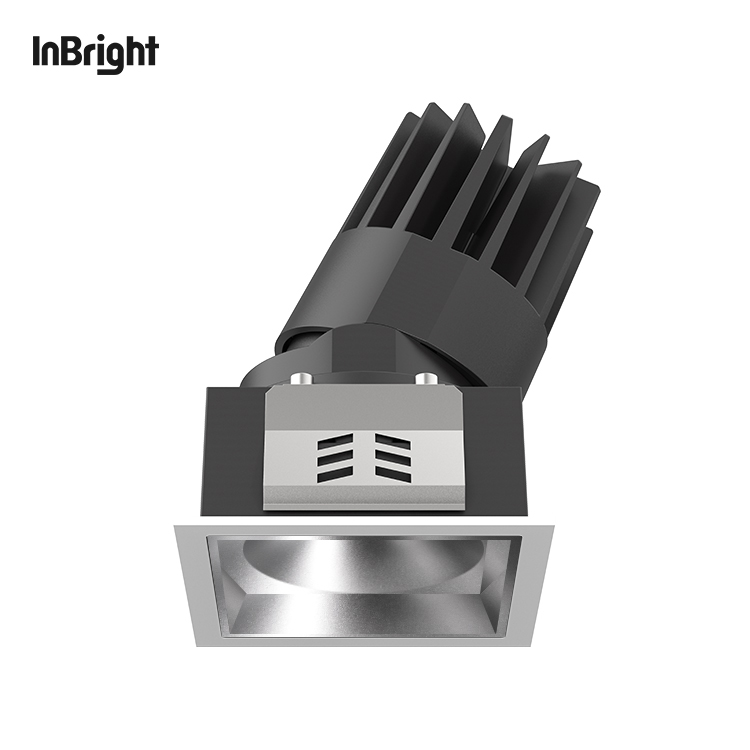

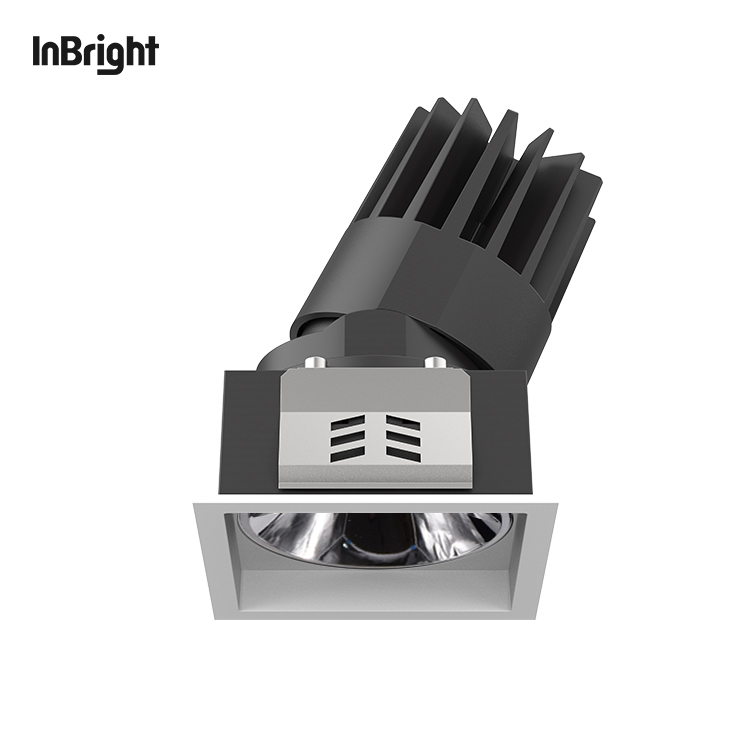

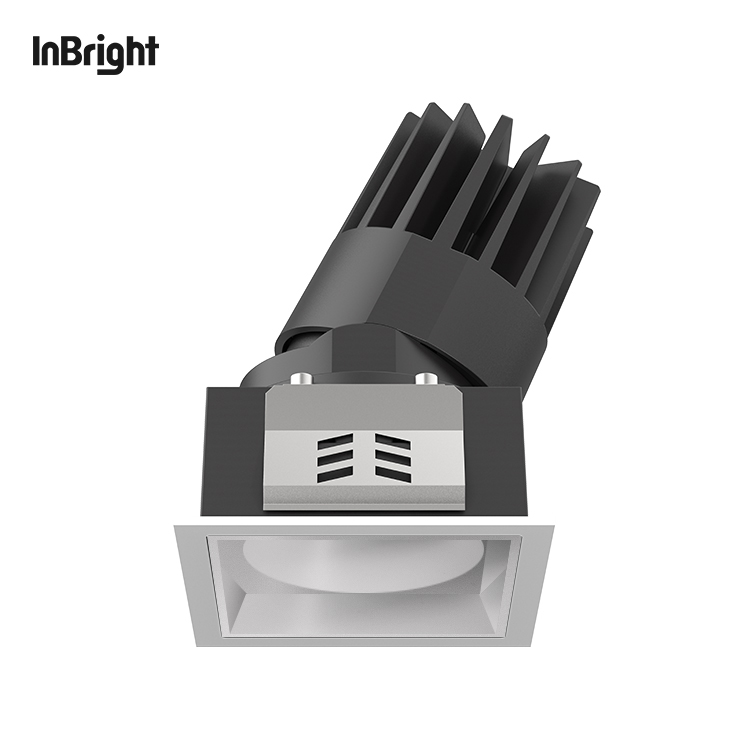

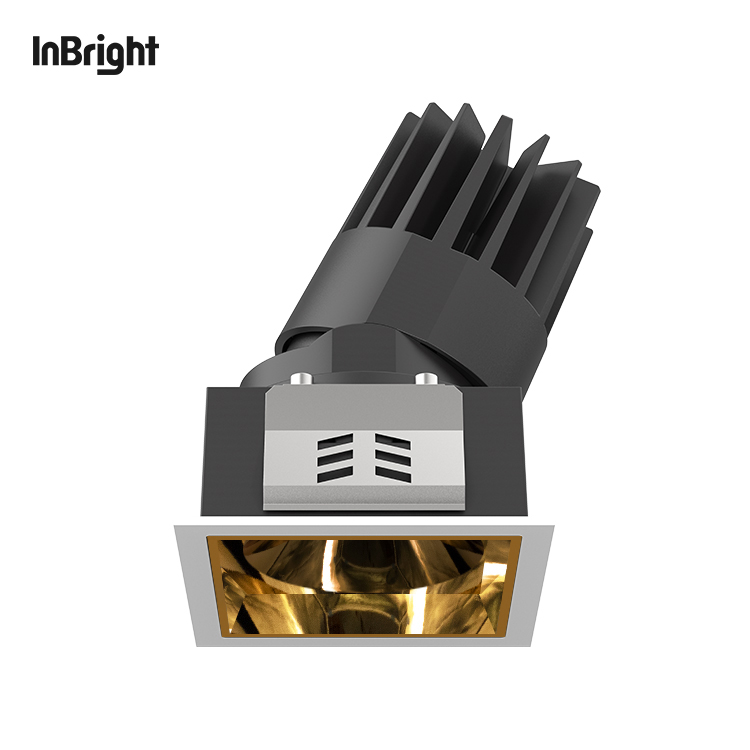

IBSP135SCT075—Beam 15°|24°|38°| 60° IP65 LED Square Spotlight
Model No
IBSP135SCT075
Diemnsion
L85×W85×H121mm
Cutout
L75×W75mm
Application
Guestroom & Suite
Lobby & Reception
Restaurant
Conference Room & Office
Corridor & Hallway
Power
18W
Beam Angle
15°24°38°60°
Color Temp
2700K3000K3500K4000K5000K5700K6500K
CRI
Ra.80Ra.90Ra.98
Power Factor
PF>0.5PF>0.9
Working Voltage
AC200-240VAC100-277V
IP Grade
IP65
Dimming Function
ON/OFFTriac Dimming0-10V DimmingDALI Dimming
LED Chip Optional
CREEBridgeluxHongliPhilipsOsram
LED Driver Optional
EagelriseLifudOsram
Installation
Recessed Mount
Quantity:
Add To Cart   Inquiry
  • Description

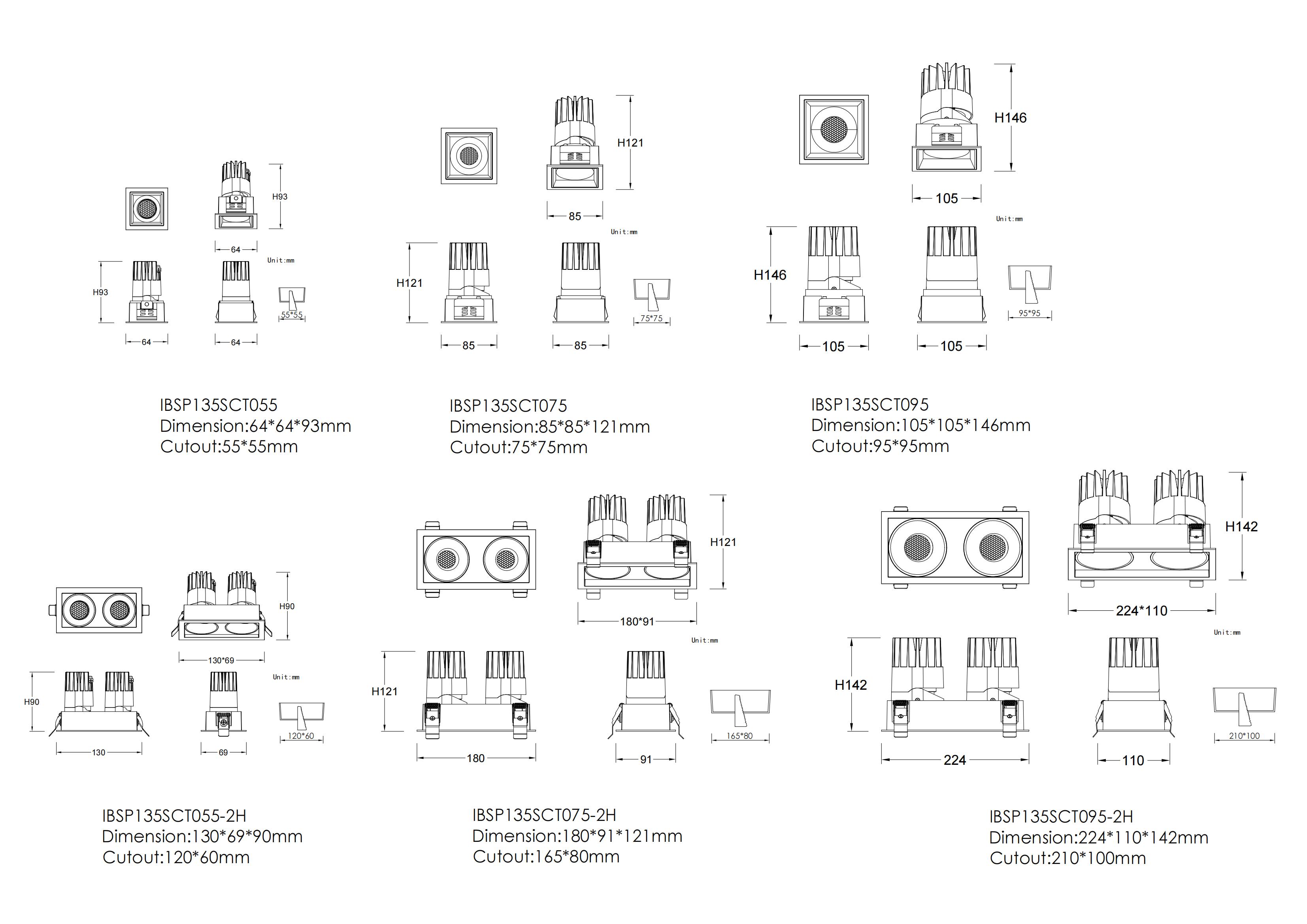

  • Line Art
  • Application
  • IES
Model No.WattsLamp Outer SizeCutout Hole SizeBeam AngleLED Type & LED driver
IBSP135SCT0558 WL64×W64×H93mmL55×W55mm15° | 24°|  38°|  60°

• LED Color:2700K|3000K|3500K|4000K|5000K|5700K|6500K
• Body Material：Die-casting Aluminum
• CRI：Ra.80|Ra.90
*** Type E--- Hongli COB LED & Constant Current LED driver AC100-240V;
Type P1--- Cree COB LED & Eaglerise ECO LED driver AC220-240V;

IBSP135SCT07518 WL85×W85×H121mm L75×W75mm
IBSP135SCT09525 WL105×W105×H146mm L95×W95mm
