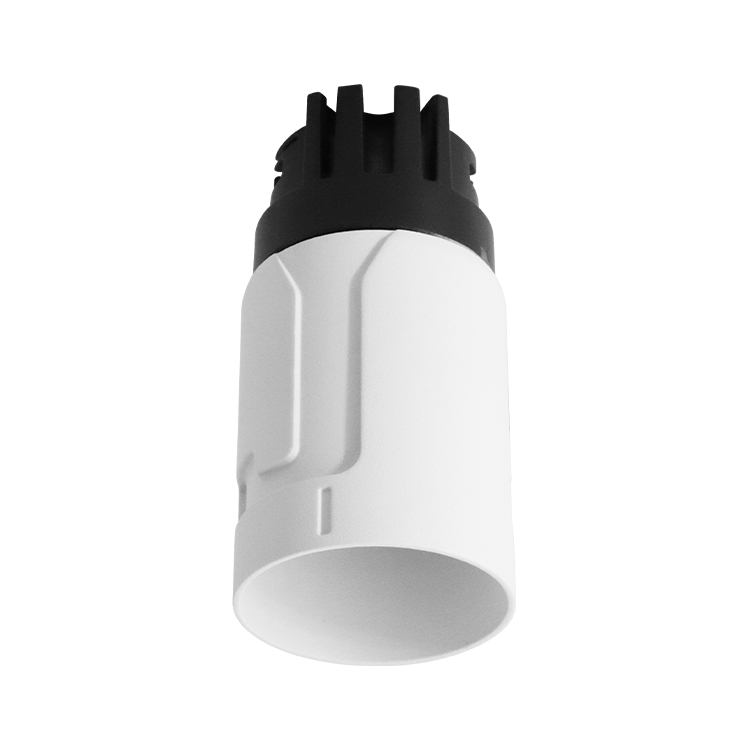

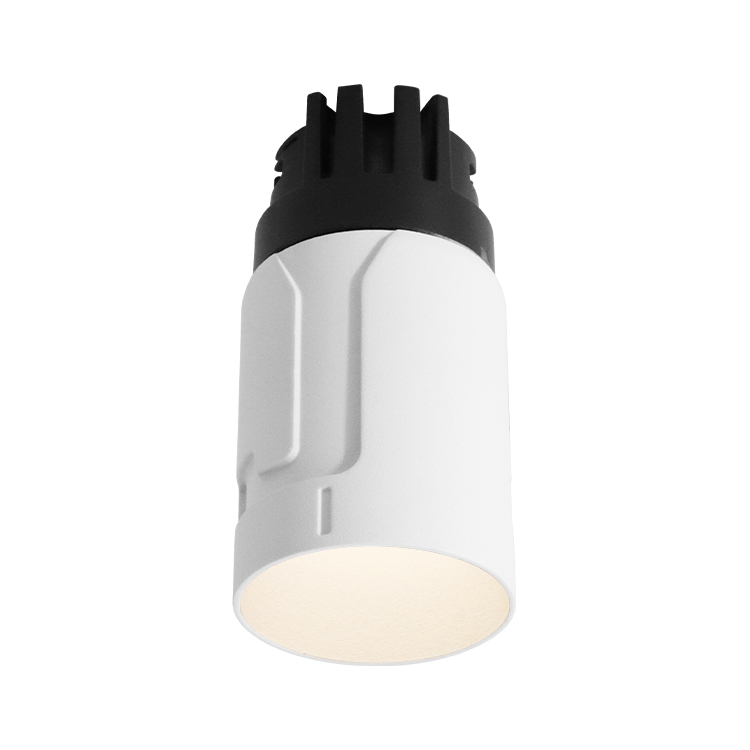

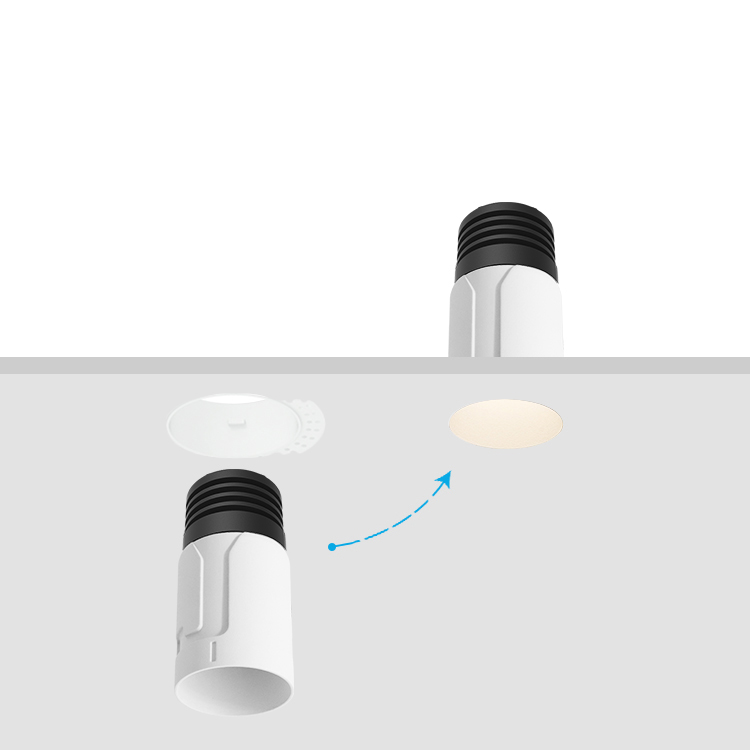

IBSP153CT050H86-Small Cut-out Module Design LED Downlight

Model No

IBSP153CT050H86

Diemnsion

Ø45*H86mm

Cutout

Application

Guestroom & Suite

Corridor & Hallway

Bathroom & SPA

Power

3-7W

Beam Angle

15°24°38°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP20IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

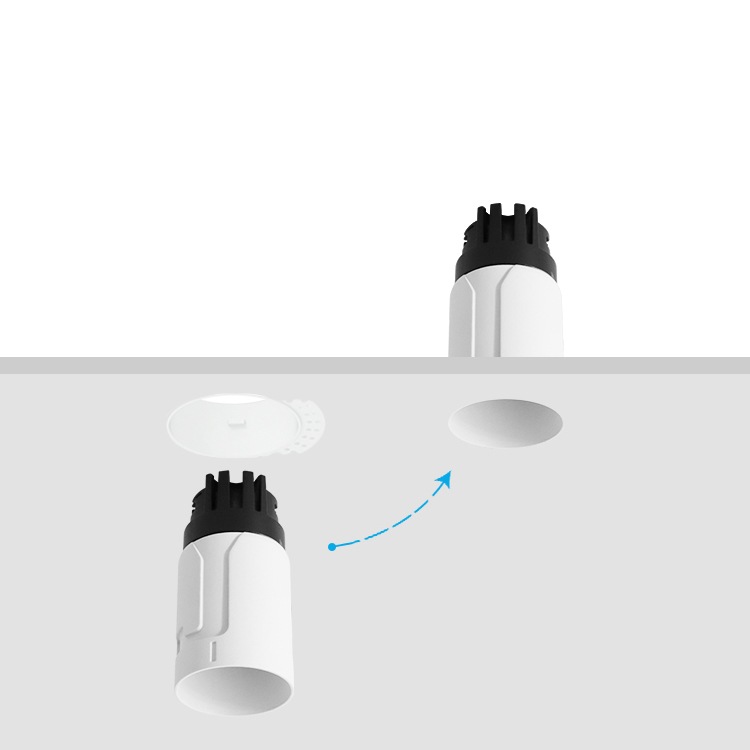

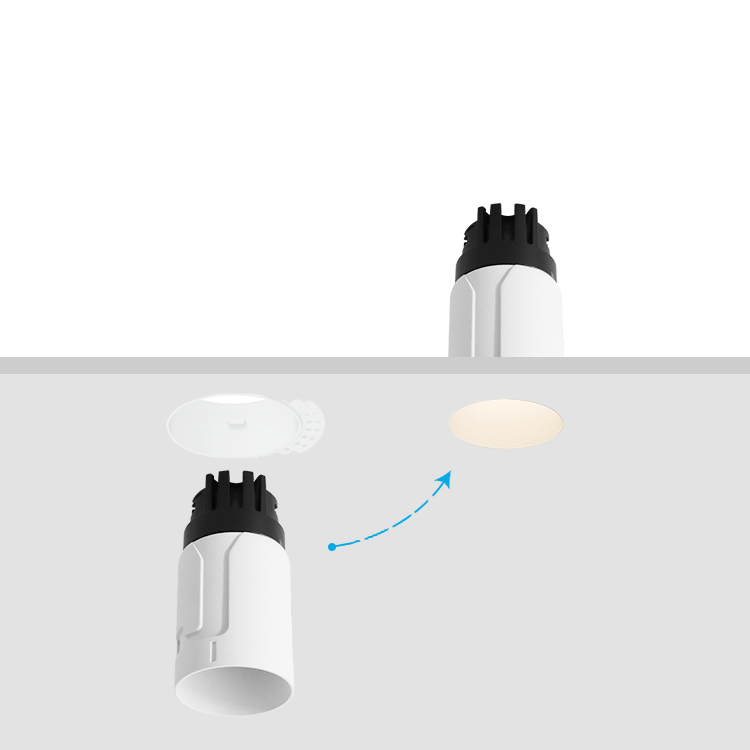

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

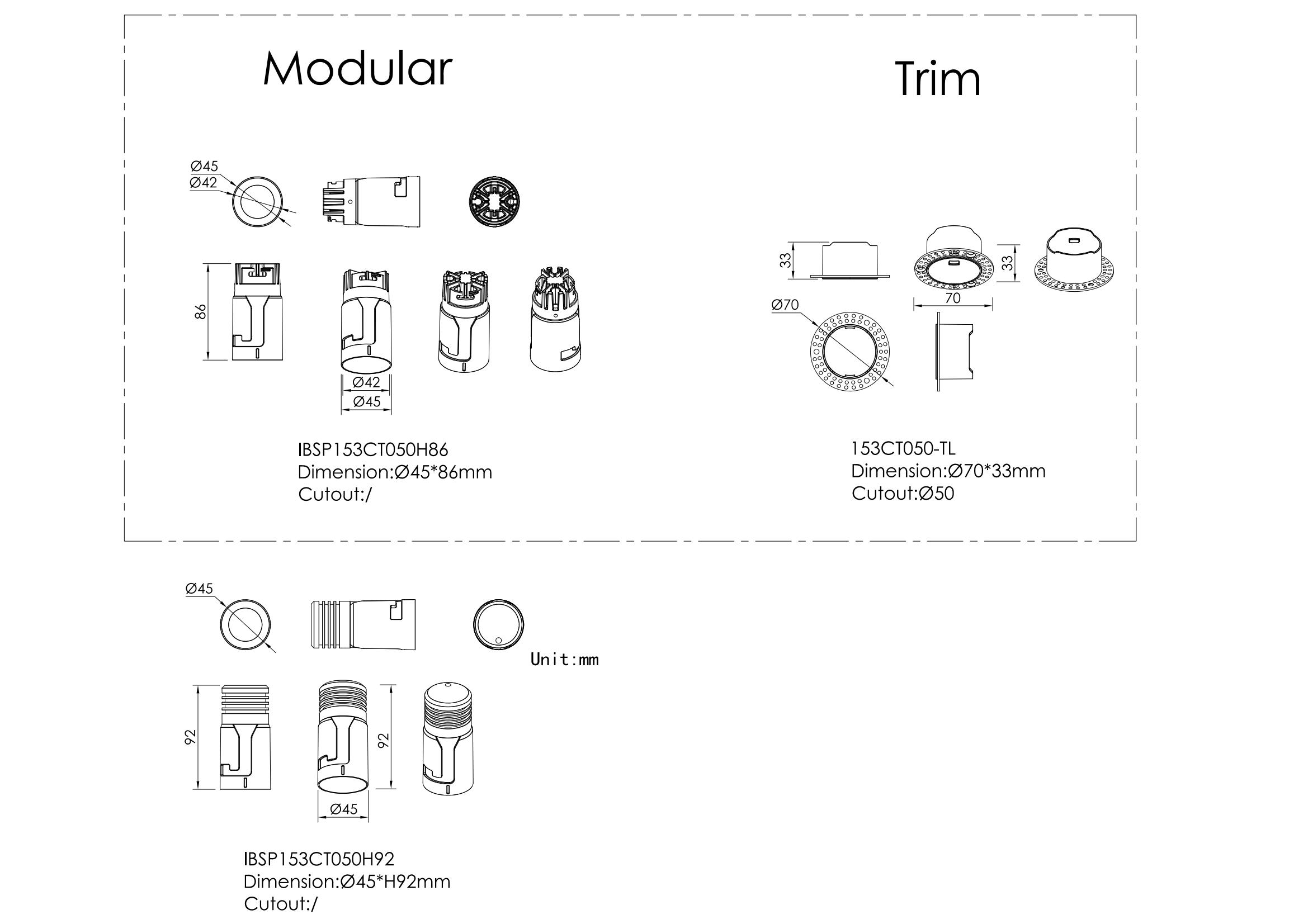

Line Art
Application
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP153CT050H86	3-7W	Ø45*H86mm	丨	15°\|24°\|38°Fixed
IBSP153CT050H92	10W	Ø45*H92mm	丨	15°\|24°\|38°Fixed

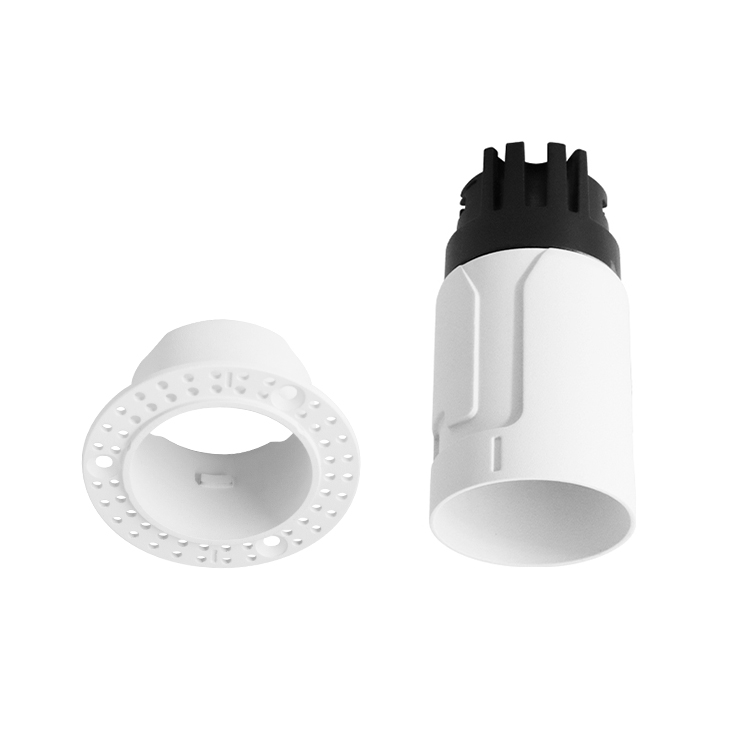

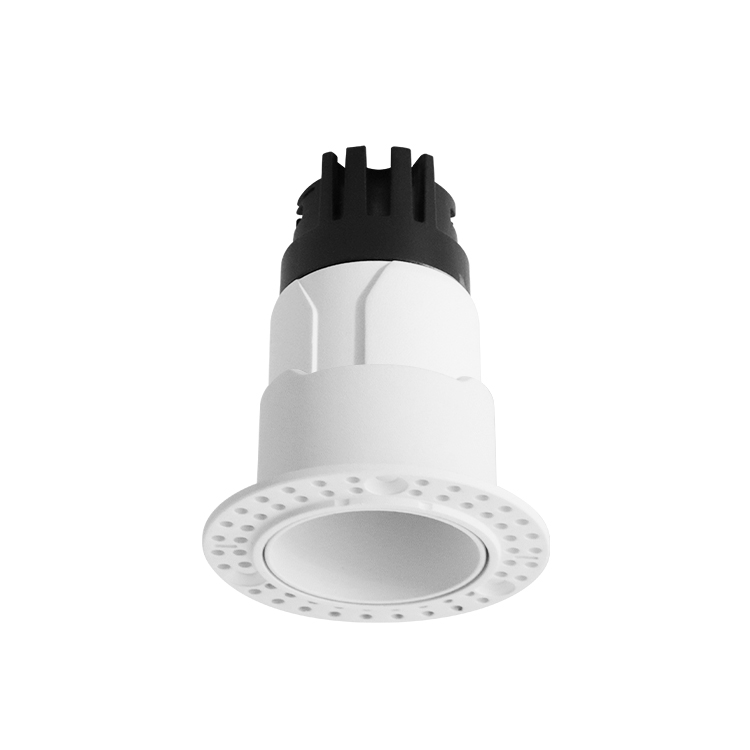

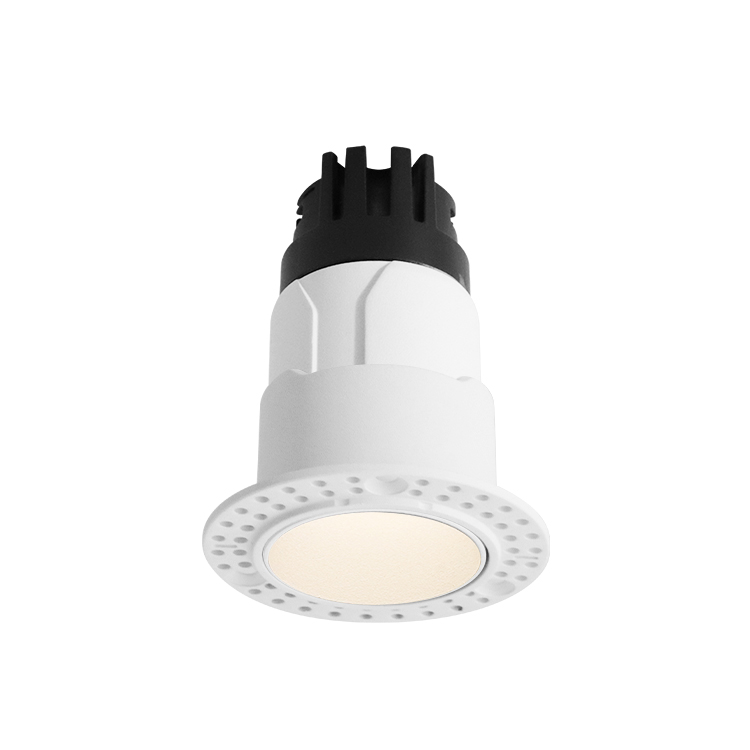

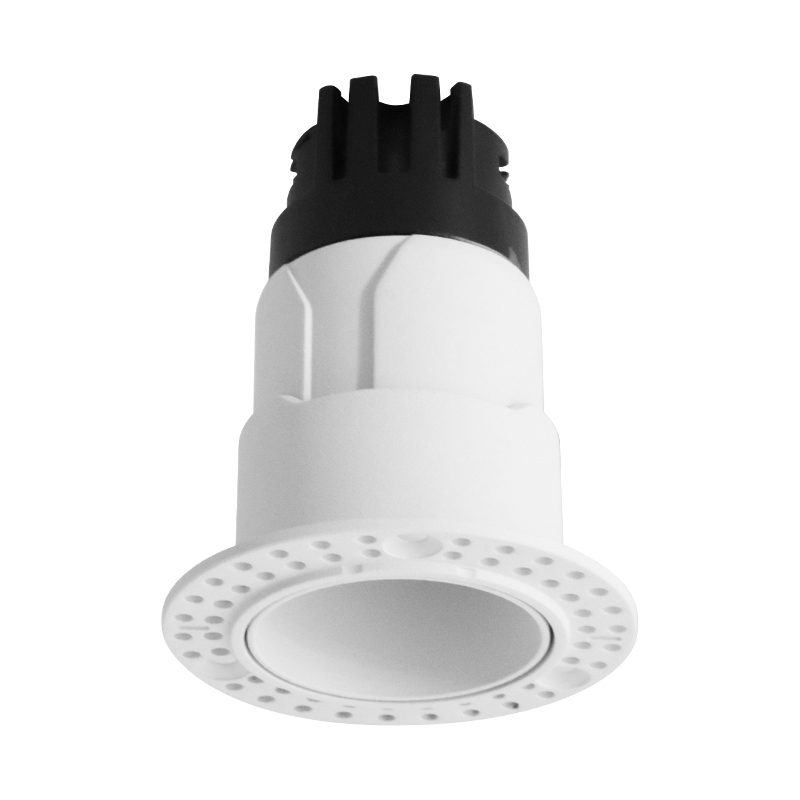

153CT050-TL (Trimless Frame)	丨	Ø70*H35mm	Ø50mm	Trimless frame for IBSP153

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Beam Angle

IBSP153CT050H86

3-7W

Ø45*H86mm

丨

15°|24°|38°Fixed

IBSP153CT050H92

10W

Ø45*H92mm

丨

15°|24°|38°Fixed

153CT050-TL

(Trimless Frame)

丨

Ø70*H35mm

Ø50mm

Trimless frame for IBSP153
