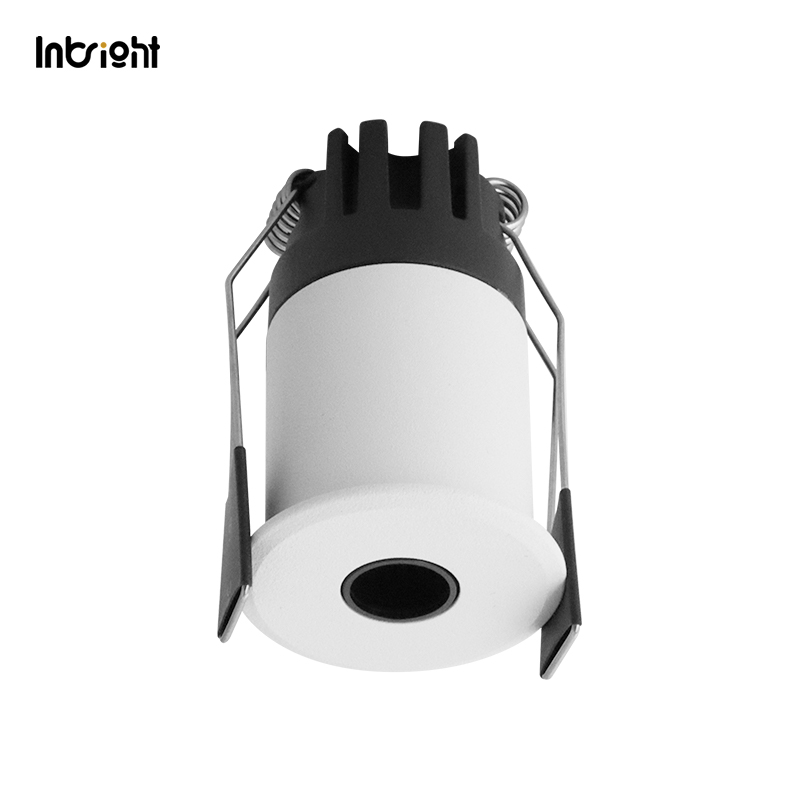

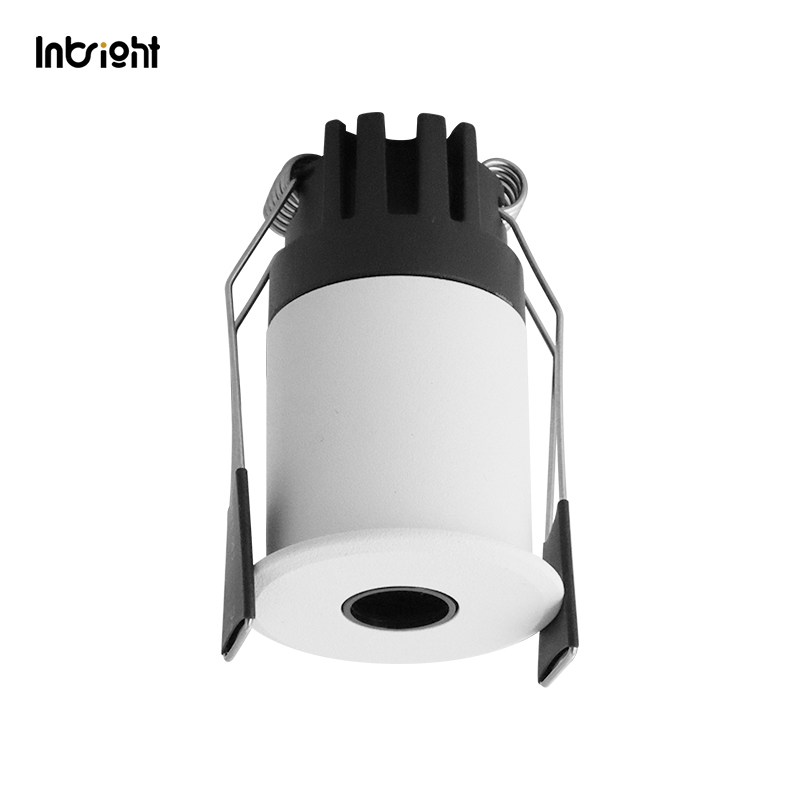

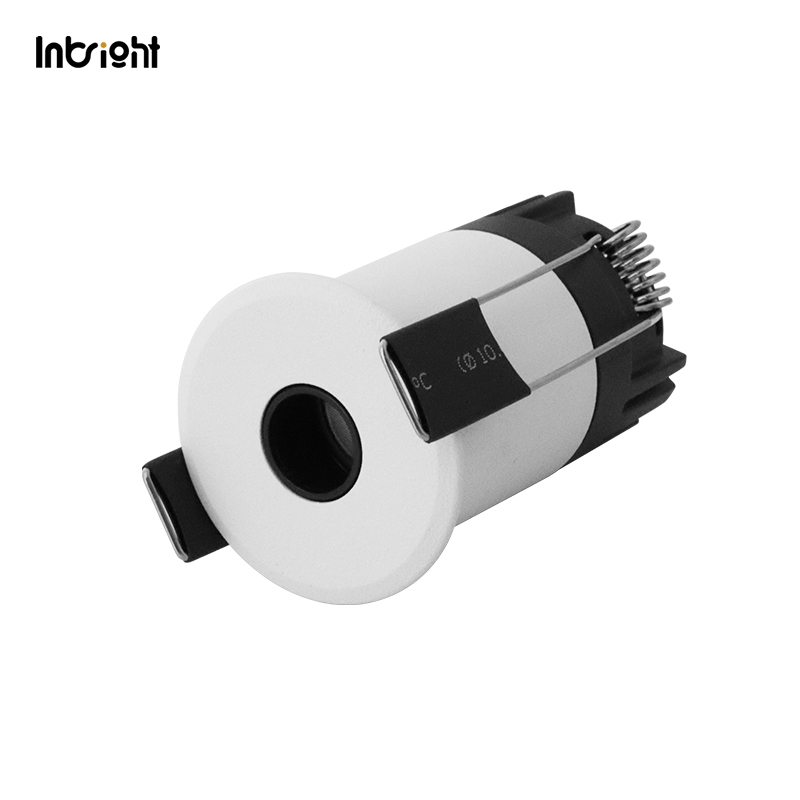

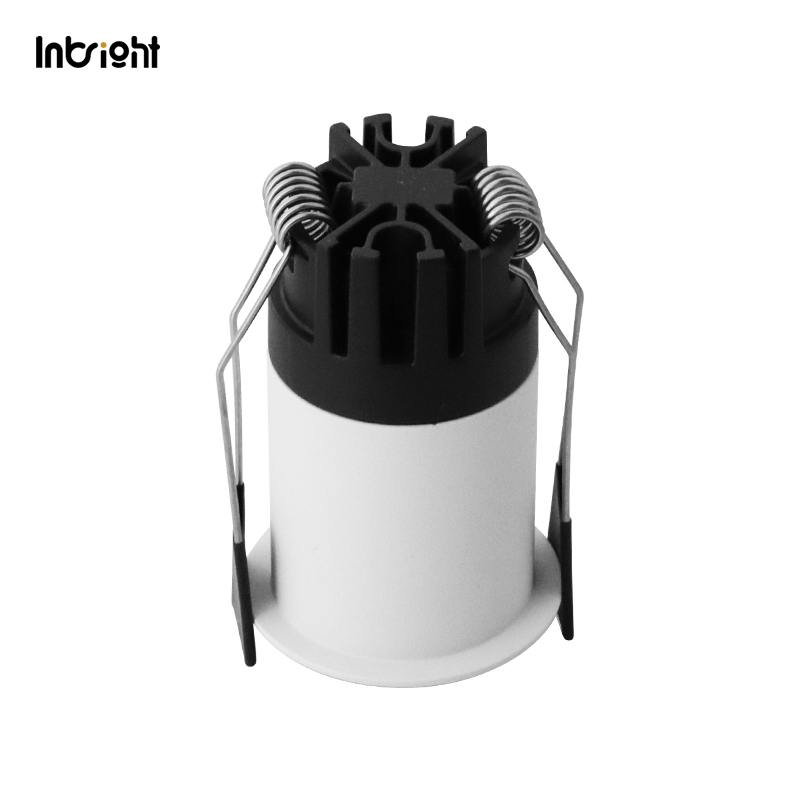

6W Narrow Beam 24°|36° Mini COB Led Spotlight For Hotel Bar

Model No

IBSP221CT042PIN

Diemnsion

Ø50×H76mm

Cutout

42mm

Application

Corridor & Hallway

Display Cases

Power

3-7W

Beam Angle

24°36°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP54

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

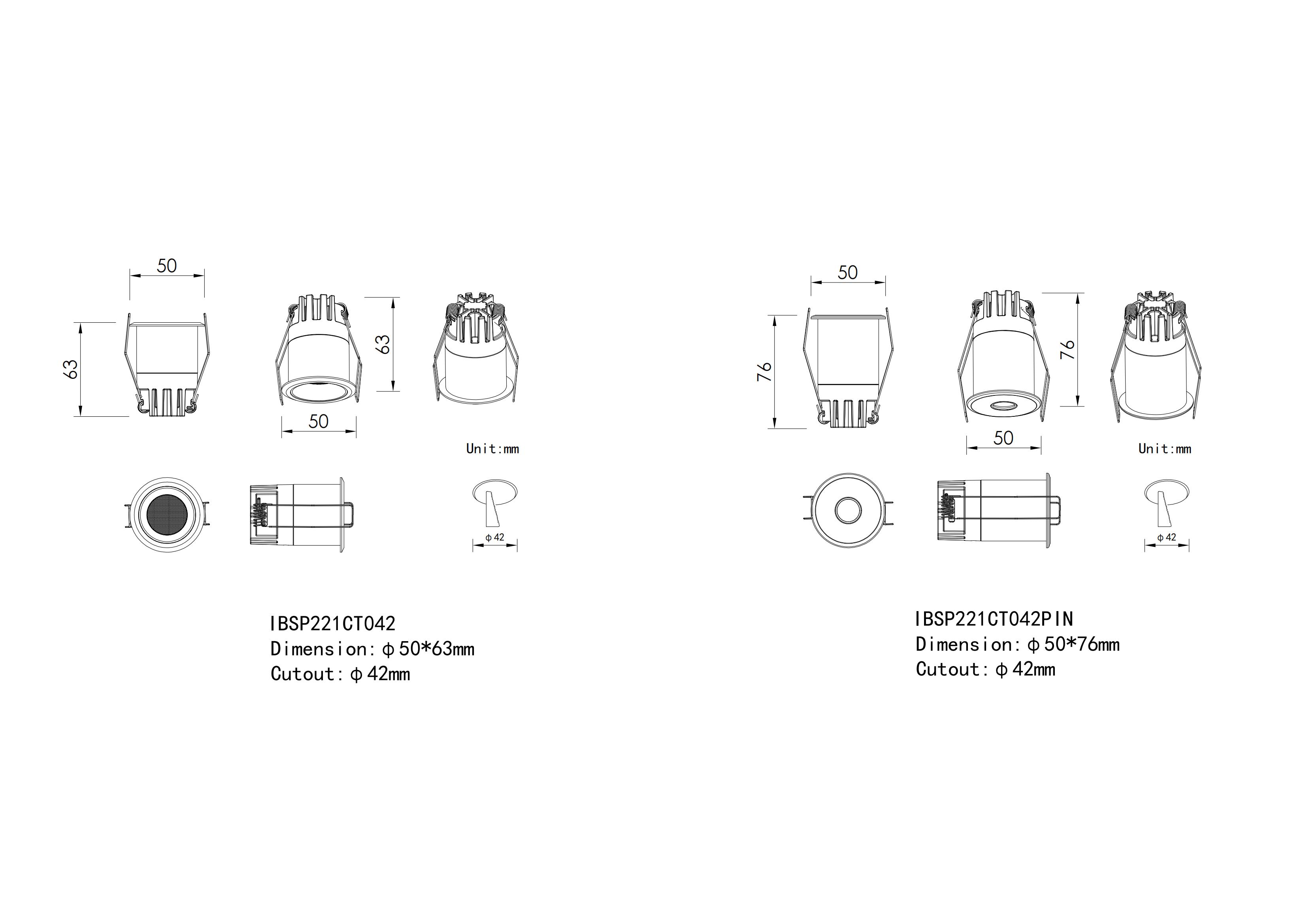

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Discription
IBSP221CT042	6 W	Ø50×H63mm	Ø42mm	• CCT:2700K\|3000K\|4000K\|5000K\|5700K\|6500K • Body Material：Die-casting Aluminum • CRI：Ra≥80\|R≥90 • IP20
IBSP221CT042PIN	6 W	Ø50×H76mm	Ø42mm

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Discription

IBSP221CT042

6 W

Ø50×H63mm

Ø42mm

• CCT:2700K|3000K|4000K|5000K|5700K|6500K

• Body Material：Die-casting Aluminum

• CRI：Ra≥80|R≥90

• IP20

IBSP221CT042PIN

6 W

Ø50×H76mm

Ø42mm
