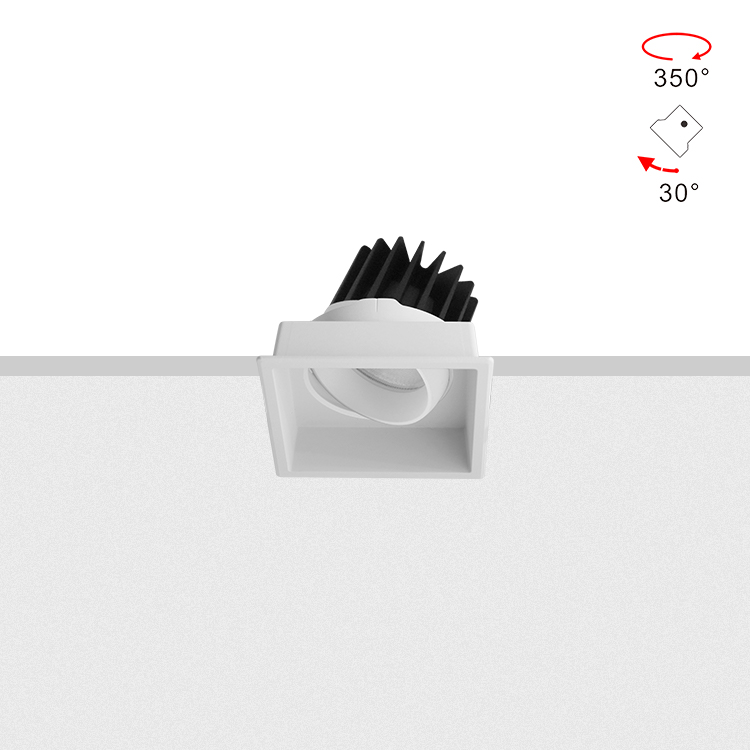

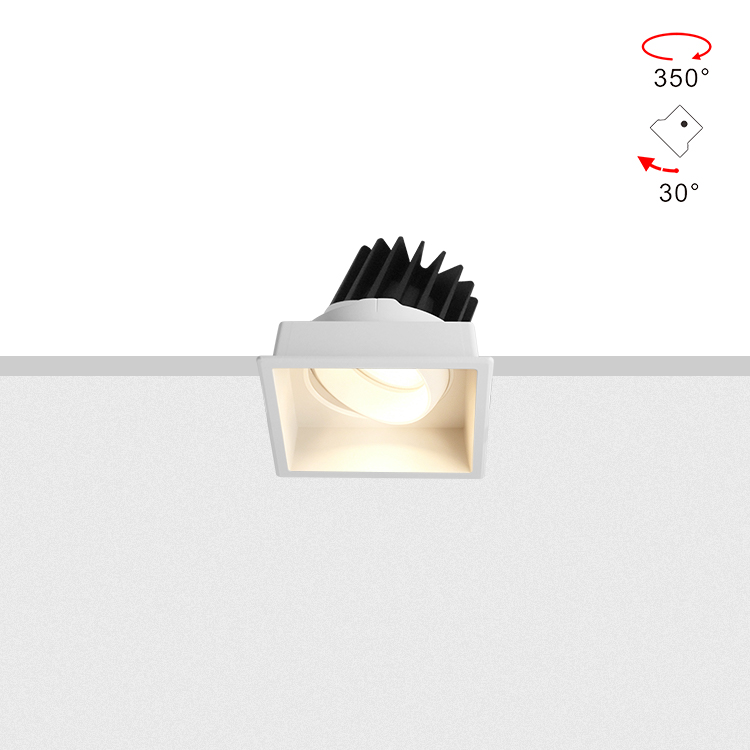

IBSP104SCT120—Reflector 15°| 24°|38°|45°|60° Adjustable IP65 Glass Diffuser Honey Comb Square Downlight

Model No

Diemnsion

Cutout

Application

Power

Beam Angle

Color Temp

CCT

Power Factor

Working Voltage

IP Grade

Dimming Function

LED Chip Optional

LED Driver Optional

Installation

Quantity:	- +

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP104SCT080	8W	L88xW88×H85mm	L80×W80mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT080H86	15W	L88xW88×H86mm	L80×W80mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT095H78	10W	L106xW106×H78mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT095H98	15W	L106xW106×H98mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT095H124	25W	L106xW106×H124mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)

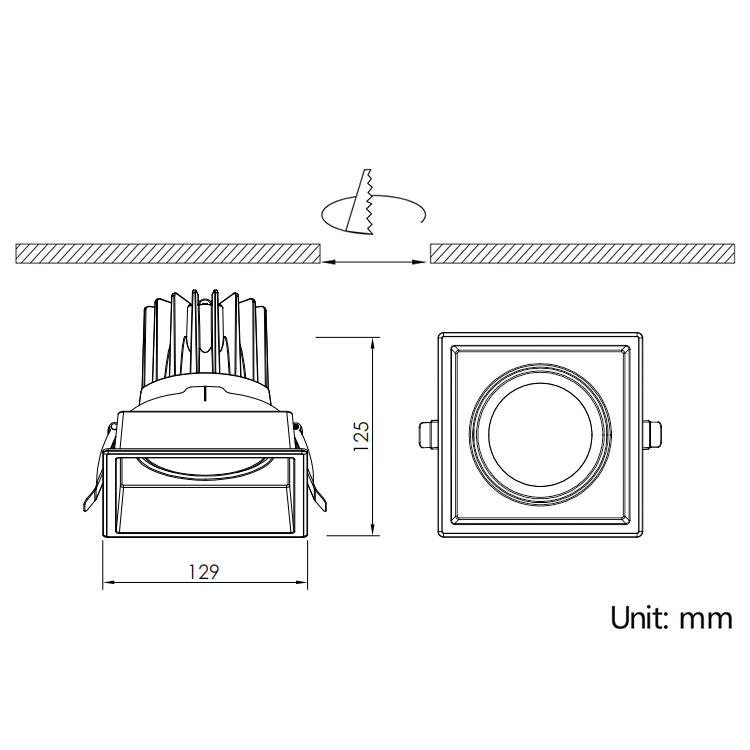

IBSP104SCT120	28W	L129xW129×H125mm	L120×W120mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
