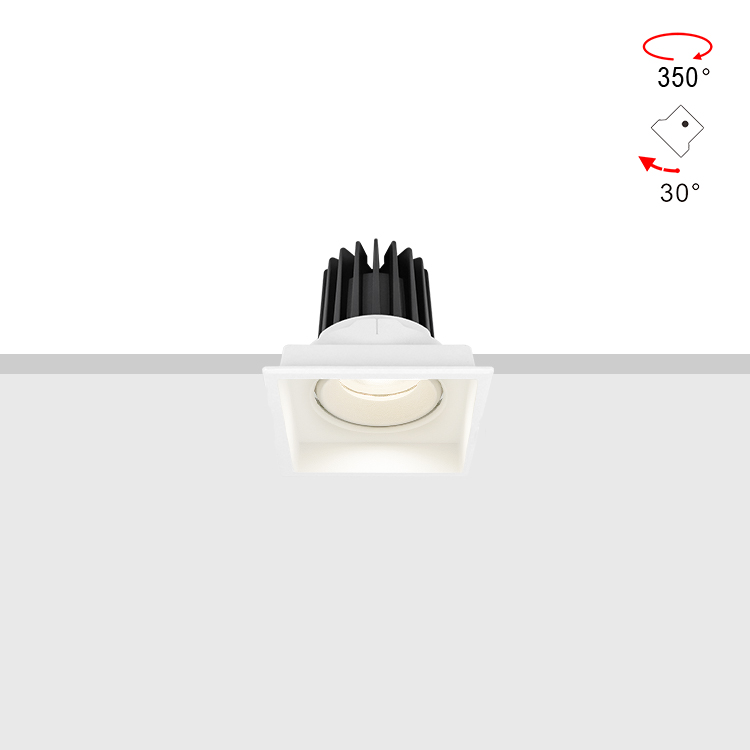

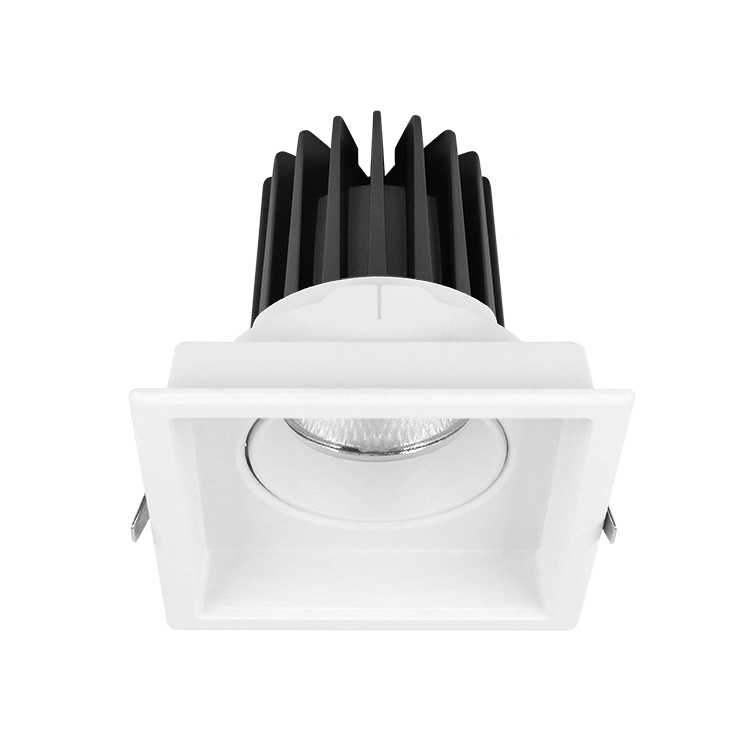

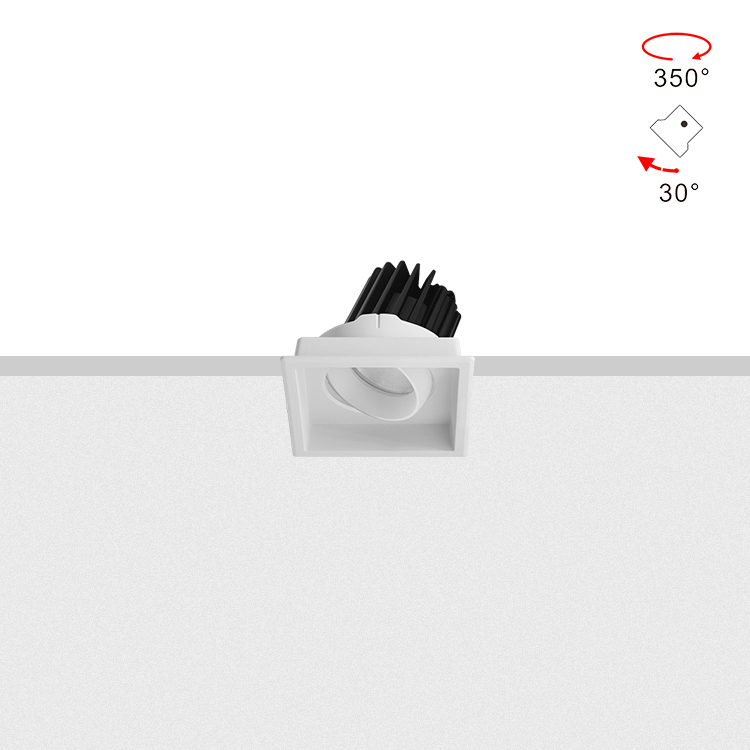

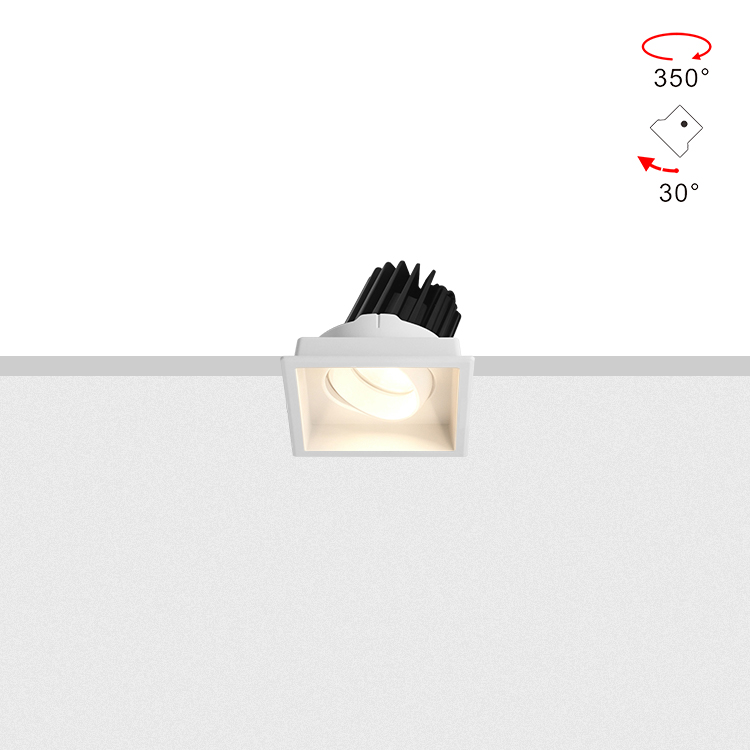

15W,Cutout L95×W95mm,Beam15°/20°/24°/36°/38°/40°/45°/60°,Horizontal 355° + Vertical 30°,IP65,Honeycomb louver Optional,Square Adjustable LED Downlight

Model No

IBSP104SCT095H98

Diemnsion

L106xW106×H98mm

Cutout

95×95mm

Application

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

Power

15W

Beam Angle

15°24°38°45°60°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

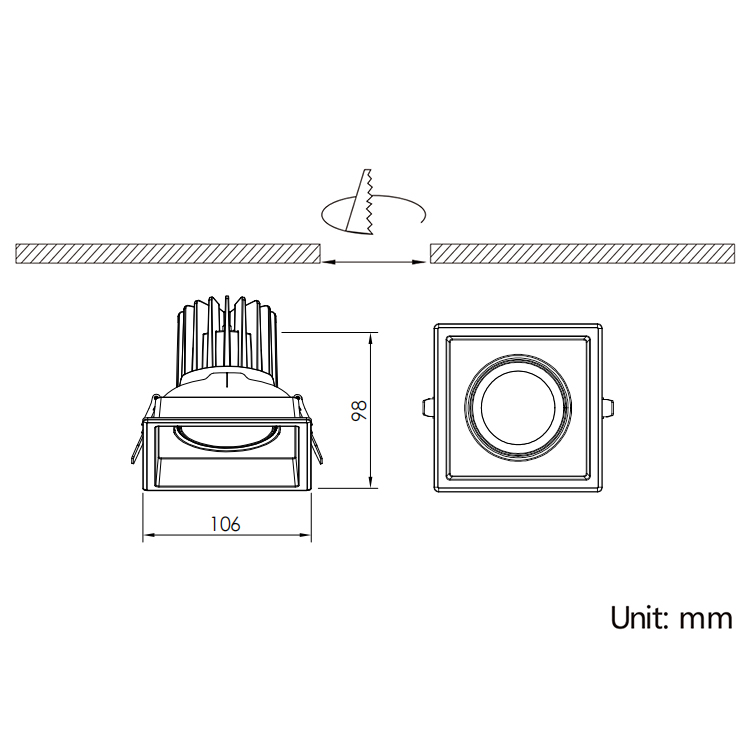

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP104SCT095H78	10W	L106xW106×H78mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT095H98	15W	L106xW106×H98mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT095H124	25W	L106xW106×H124mm	L95×W95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT120	28W	L129xW129×H125mm	L120×W120mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104SCT120H140	40W	L129xW129×H140mm	L120×W120mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)

IBSP104S Datasheet.pdf

05[07] IBSP104S Installation Instruction.pdf

IBSP104SCT095H98-15°-15W-40K-原装普瑞 V10-伊戈尔 15W.pdf

IBSP104SCT095H98-24°-15W-40K-原装普瑞 V10-伊戈尔 15W.pdf

IBSP104SCT095H98-38°-15W-40K-原装普瑞 V10-伊戈尔 15W.pdf

IBSP104SCT095H98-45°-15W-40K-原装普瑞 V10-伊戈尔 15W.pdf

IBSP104SCT095H98-60°-15W-40K-原装普瑞 V10-伊戈尔 15W.pdf
